    White 20W 100 Ohm / 100R Cement Power Resistor , High Temperature Resistor

    Ask Lasest Price
    Brand Name : UCHI
    Certification : UL,SGS
    Model Number : CR
    Price : Negotiable
    Delivery Time : 7 days
    Payment Terms : T/T
    Supply Ability : 400,000,000
    • Product Details
    • Company Profile

    White 20W 100 Ohm / 100R Cement Power Resistor , High Temperature Resistor

    White 20W 100 Ohm / 100R Cement Power Resistor , High Temperature Resistor

    Quick Details
    • Temperature Range: -55°C ~ +155°C
    • 5% tolerance
    • Exceptionally small, sturdy, and reliable
    • Sealed with a special cement
    • Excellent moisture resistance
    • High temperature stability
    • Ceramic flame retardant package
    • Recommended wash method is alcohol
    Description

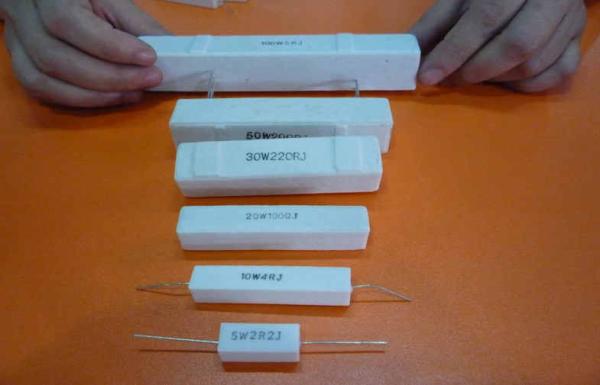

    Cement Resistors are made by winding resistance wires around non-alkaline ceramic core or metal oxide film rod, which is added with a layer of heat and humidity resistant and non-corrosive protective material. Token offers wide range !
    Application
    Specification

    Rated power

    Rated power is maximum power which can be continuously loaded at specified ambient temperature 70℃,as Table-1

    Rated power


    Maximum working

    voltage

    Maximum overload

    voltage

    Dielectric withstanding

    voltage

    Max Intermittence

    Overload Voltage

    1W

    350V

    700V

    1000V

    1500V

    2W

    350V

    700V

    1000V

    1500V

    3W

    500V

    1000V

    1000V

    1500V

    5W

    750V

    1500V

    1000V

    1500V

    7W

    1000V

    1500V

    1000V

    1500V

    10W

    1000V

    1500V

    1000V

    1500V

    15W

    1000V

    15000V

    1000V

    1500V

    20W

    1000V

    1500V

    1000V

    1500V

    30W

    1000V

    1500V

    1000V

    1500V

    40W

    1000V

    1500V

    1000V

    1500V


    Rated voltage

    The rated voltage shall be the D.C. or A.C.(R.M.S. at power frequency) voltage which corresponds

    the rated power and the value of which is calculated from the formula below.


    E=√(P×R) Where E: Rated voltage(V)

    P: Rated power(W)

    R: Nominal resistance(Ω)


    Operating Temperature Range:-55℃~+250℃


    Competitive Advantage:


    1. Factory supply directly
    2. Completed certificates such as UL,VDE,SGS,etc and high quality available
    3. Quick delivery
    4. Best after-sales services
    5. OEM & ODM available
