    4 X 15mm UL 249-14 3A 350V Glass Fuses For Ballasts , Time-Lag Glass Fuse RoHS

    4 X 15mm UL 249-14 3A 350V Glass Fuses For Ballasts , Time-Lag Glass Fuse RoHS


    Quick Detail:


    1.In accordance with Underwriter's Laboratories standard UL 249-14
    2. Fuses are boardwashable in most solvents
    3.Available in cartridge and axial lead form and with various forming dimensions
    4.RoHS compliant and Lead-free

    Description:

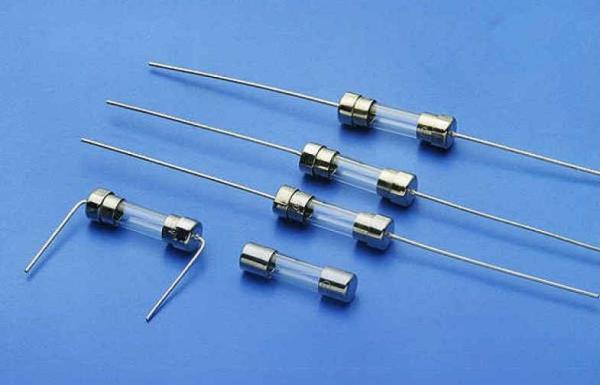

    RTP Series 3A 350V time-lag(slow blow) fuses are available in cartridge form or with axial leads. This series provides the same performance characteristics as its 3AG counterpart, while occupying one-third the space.

    Sleeved fuses are available.

    Applications:


    Electronics Lighting Ballasts


    Specifications:


    1. Applicable Scope

    This product applies for All kinds of electronic circuit in the produce in not normal current (including time is too long, too much electricity) on the machine of the current due to damage in time to play the role of the current cut off, in order to protect the safety of the whole machine

    2.This series product by approval as following

    number

    volltage

    current

    approval number

    1

    250V

    1A~3.15A

    CQC11012061981

    2

    250V

    500mA ~5A

    CQC11012058774

    CQC11012061982

    3

    250V

    1A ~3.15A

    40034581

    4

    250V

    500mA ~5A

    40032053

    5

    350V

    100mA ~10A

    E340427

    3.Structure & Size


    numbers

    Parts name

    materials

    1

    Lead wire

    Copper Plating Tin

    2

    End cap

    Copper nickel plating

    3

    ceramic tube

    ceramic

    4

    Element

    Alloy wire

    Hot shrinkage

    Hot shrinkagetube


    Explain

    Lead wire: Lead only plays both ends an electrode and the role of the electrical properties of

    product can't afford function decomposition

    Ceramic tube:To plays fixed and support

    End cap: With 58% ~ 62% of brass for base, and nickel plating to prevent oxidation


    Fuse elements: The key parts of the decided to fuse current specifications


    1. Marking


    The products lable in two end cap ,cap A and cap B, for the following schedule


    For example


    Cap A: Rated current+Rated volltage

    (100mA~10A) A

    Cap B:Type+manufacture’s logo+ Approved Symbol(optional)

    cURus 350V


    The size of the words not defined,and must be very easy to read.

    There shall not be any remarkable stain, rust or crack on the appearances.


    2. Part of Testing


    5.1 Mechanical characteristics


    A. Tensile Test


    When fuse is fixed and the tensile force 5N is applied in direction to lend.After the test, there shall be no remarkable damage to the fuses.


    B. Thrust Test

    When fuse is fixed and the thrust 2N is applied in direction to lend.After the test, there shall be no remarkable damage to the fuses

    C.Bending Test


    Test Condition: Force 5N is applied; number of bends shall be one.After the test, there shall be no remarkable damage to the fuses.


    2.2 Electrical characteristics


    All tests are in the environment temperature 25 ± 5 ℃; Relative humidity45%~75%


    5.2.1 Over load test


    When the current in the following table is passing the fuse, its opening time must be in accordance with the requirements in the following table, that is, the pre-arcing time. Moreover, neither damage of the fuse-tube nor shattering of the cap shall occur.

    5.2.2 Breaking capacity test


    Rated breaking capacity:And after this test, there should be no damage of the fuse-tube or shattering of the caps. After this test, the insulation resistance between the end caps shall be not less than 0.1MΩ.


    350V:Rated AC 100A


    5.2.3 Temperature rising


    At 100% times of rating electric current passes the fuse ,After reaching thermal balance, the temperature on the fuse surface rising is not higher than 75℃.


    Testing current

    Blowing time

    100%

    4 hours Min

    200%

    60 sec Max

    1000%

    10ms Min


    I-T Curve


    I2T:Melting integral



    Current

    I2T

    Current

    I2T

    100mA

    0.002

    1.25A

    1.3

    125mA

    0.003

    1.5A

    1.6

    160mA

    0.005

    1.6A

    2.5

    200mA

    0.01

    2A

    5.8

    250mA

    0.02

    2.5A

    7.6

    300mA

    0.04

    3A

    8.1

    315mA

    0.045

    3.15A

    11

    350mA

    0.055

    3.5A

    19

    400mA

    0.07

    4A

    28

    500mA

    0.1

    5A

    40

    630mA

    0.2

    6A

    50

    750mA

    0.35

    6.3A

    64

    800mA

    0.45

    8A

    133

    1A

    0.9

    10A

    242


    PACKING(reference, According to the requirement of packaging)

    bulk 500 fuses per plastic- bag, 4 plastic- bags per inner box, 10 inner boxs per outer box.

    In fact can be based on the customer orders requirements


    Competitive Advantage:


    1. Factory supply directly

    2. Completed certificates such as UL,VDE,TUV,etc and high quality available

    3. Quick delivery

    4. Best after-sales services

    1. OEM & ODM available


    Certificates
