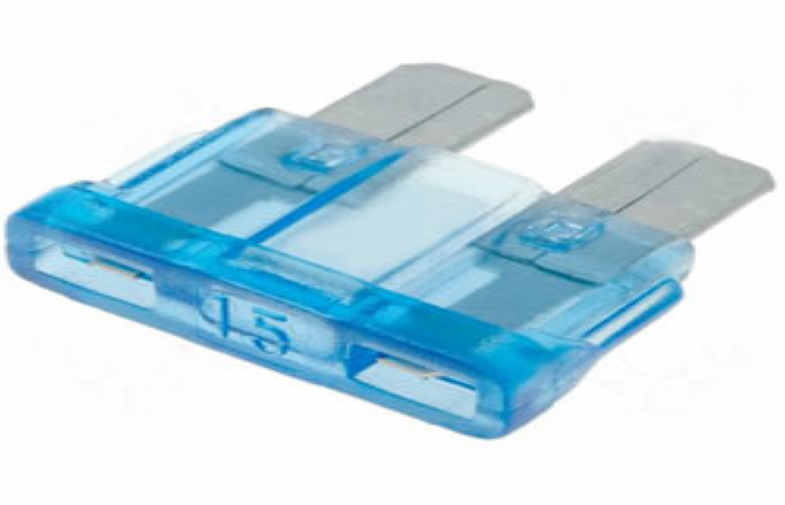

    Medium 32V Auto Blade 32V Fuse block For Audi A8 , Automotive Fuses

    Medium 32V Auto Blade 32V Fuse block For Audi A8 , Automotive Fuses


    Quick Details


    1)plug-in versions
    2)Internationally approved
    3)Worldwide availability
    Description

    Developed by UCHI for the automotive industry, MEDIUM AUTO BLADE fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks. Readily identifiable and easily replaced, this fuse can be specified for a variety of low voltage electronic applications.

    Application
    -Machine
    -Vehicle
    Specification
    1. Scope of application

    Suitable for auto lighting, auto guard against theft, UPS etc Also applied to low voltage electronic products, little transformers, electronic toys, chargers and so on. Blade fuses are color-coded for easy amperage identification. Instead.

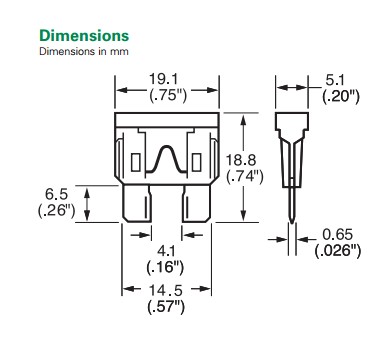

    2. Structure and size (unit: mm)


    3. Material Details

    NO.

    Part Name

    Material

    1

    plastic crust

    Plastic

    2

    Zinc Piece

    Zinc


    4. Mark and Appearance


    4.1 The mark on the fuse should be clear

    4.2 There should be the following marks on the both caps of fuse

    A:Rated Current

    4.3 The appearance of the fuse should be clean and have no stain , oxidizing , etc . The plastic crust should not have been broken , polluted etc.


    5. Electrical characteristics


    5.1 Test Condition

    All electrical tests are conducted at an ambient temperature of 25±5℃.


    5.2 Color Mark:


    Current(A)

    Color

    Current(A)

    Color

    1

    BLACK

    10

    RED

    2


    GREY

    15

    BLUE

    3

    Violet

    20

    YELLOW

    4

    Pink

    25

    NATURAL

    5

    TAN

    30

    GREEN

    7.5

    BROWN

    35

    Puple

    40Orange

    5.3. Time-Current Characteristics


    Rating

    Blowing Time

    110%

    360,000s Mini

    135%

    350ms Mini/0.75s Max

    200%

    100ms Mini/0.15s Max


    Competitive Advantage


    1. Factory supply directly

    2. Completed certificates such as UL,VDE,SGS,etc and high quality available

    3. Quick delivery

    4. Best after-sales services

    5. OEM & ODM available
