    Over-load Protection 270 V PTC Thermistors / 2 Pins Posistor Thermistor


    Over-load Protection 270 V PTC Thermistors / 2 Pins Posistor Thermistor


    Quick Details


    ·Optional on 3 construction, resin coated leaded form, 2 pins, dual PTC 3 pins.

    ·Nominal resistance from 3 ohm to 36 ohm.

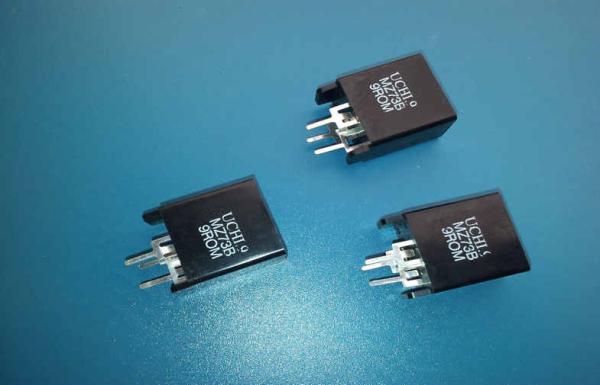

    Outlook and Dimension (mm)


    Descirption


    PTC thermistor degauss the shadow mask of color picture tube by reducing the alternating current flowing through the degaussing coil within a short period of time. A large difference between inrush current and residual current is crucial for good degaussing. We can provide leaded and housed PTC thermsitor for degaussing purpose. Particularly, in a double PTC, a PTC connected to the coil, as compared to a single PTC, this configuration permits the residual current to reduce further.

    Over-load Protection 270 V PTC Thermistors / 2 Pins Posistor Thermistor

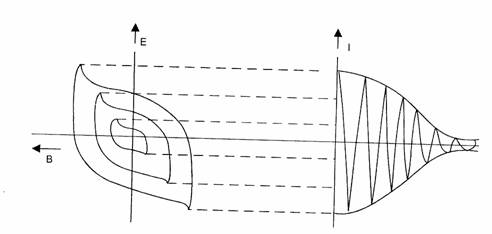

    PTC degaussing principle

    Over-load Protection 270 V PTC Thermistors / 2 Pins Posistor Thermistor

    By using dual PTC thermistor, residual current is significantly reduced.


    Application


    Degaussing of picture tube, such as color TV, monitor.


    Specification


    Degaussing PTC Thermistor resin coated leaded disk form data sheet

    Nominal Resistance
    R25
    (Ω)

    Rated. Voltage
    (V)

    Max. Voltage
    (V)

    Current Characteristics

    Switch Temperature
    (℃)

    Coil Resistance
    (Ω)

    Diameter
    (mm)

    Thickness
    (mm)

    Initial Current
    (A)

    After 3 seconds
    (mA)

    After 180 seconds
    (mA)

    5

    110

    140

    ≥35

    ≤300

    ≤60

    60±10

    3.5

    20

    7

    7

    110

    140

    ≥28

    ≤300

    ≤60

    3.5

    8

    110

    140

    ≥22

    ≤300

    ≤60

    5

    9

    110

    140

    ≥21

    ≤300

    ≤60

    5

    12

    110

    140

    ≥17

    ≤300

    ≤60

    5

    7

    220

    270

    ≥22

    ≤300

    ≤45

    20

    9

    220

    270

    ≥20

    ≤300

    ≤45

    20

    12

    220

    270

    ≥22

    ≤300

    ≤45

    15

    14

    220

    270

    ≥20

    ≤300

    ≤45

    15

    18

    220

    270

    ≥19

    ≤300

    ≤45

    12

    27

    220

    270

    ≥15

    ≤300

    ≤30

    10

    11.5-13.0

    7

    PTC degausser encased 2 pins form data sheet

    Nominal Resistance
    R25
    (Ω)

    Rated. Voltage
    (V)

    Max. Voltage
    (V)

    Current Characteristics

    Switch Temperature
    (℃)

    Coil Resistance
    (Ω)

    Min. coil resistance
    (mm)

    Initial Current
    (A)

    After 3 seconds
    (mA)

    After 180 seconds
    (mA)

    3

    110

    140

    ≥22

    ≤300

    ≤60

    60±10

    10

    5

    4.5

    110

    140

    ≥30

    ≤300

    ≤60

    5

    4

    5

    110

    140

    ≥35

    ≤300

    ≤60

    3.5

    1

    5

    110

    140

    ≥24

    ≤300

    ≤60

    5

    4

    8

    110

    140

    ≥22

    ≤300

    ≤60

    5

    3.5

    9

    110

    140

    ≥20

    ≤250

    ≤50

    5

    3

    12

    110

    140

    ≥17

    ≤250

    ≤50

    5

    3

    14

    110

    140

    ≥15

    ≤250

    ≤50

    5

    3

    4.5

    220

    270

    ≥30

    ≤200

    ≤50

    15

    12

    7

    220

    270

    ≥27

    ≤200

    ≤50

    15

    12

    9

    220

    270

    ≥24

    ≤200

    ≤40

    15

    10

    12

    220

    270

    ≥24

    ≤200

    ≤40

    12

    8

    14

    220

    270

    ≥24

    ≤200

    ≤40

    10

    8

    18

    220

    270

    ≥22

    ≤200

    ≤40

    8

    6

    27

    220

    270

    ≥17

    ≤200

    ≤40

    6

    5

    14

    220

    270

    ≥24

    ≤300

    ≤50

    80±10

    10

    8

    18

    220

    270

    ≥20

    ≤300

    ≤50

    10

    8

    Degaussing PTC Thermistor dual PTC 3 pins form data sheet

    Nominal Resistance
    R25
    (Ω)

    Resistance of Assistance PTC Heater
    (Ω)

    Rated. Voltage
    (V)

    Max. Voltage
    (V)

    Current Characteristics

    Switch Temperature
    (℃)

    Coil Resistance
    (Ω)

    Initial Current
    (A)

    After 3 seconds
    (mA)

    After 180 seconds
    (mA)

    3

    100-1000

    110

    140

    ≥28

    ≤300

    ≤15

    60±10

    5.5

    4.5

    110

    140

    ≥23

    ≤300

    ≤15

    8

    5

    110

    140

    ≥35

    ≤300

    ≤15

    3.5

    7

    110

    140

    ≥24

    ≤300

    ≤15

    5

    8

    110

    140

    ≥22

    ≤300

    ≤15

    5

    9

    110

    140

    ≥17

    ≤300

    ≤15

    8

    12

    110

    140

    ≥14

    ≤300

    ≤15

    8

    14

    110

    140

    ≥12

    ≤300

    ≤15

    10

    4.5

    220

    270

    ≥30

    ≤300

    ≤12

    15

    7

    220

    270

    ≥26

    ≤300

    ≤10

    15

    9

    220

    270

    ≥24

    ≤300

    ≤10

    15

    12

    220

    270

    ≥24

    ≤300

    ≤10

    12

    14

    220

    270

    ≥24

    ≤300

    ≤10

    10

    18

    220

    270

    ≥22

    ≤300

    ≤10

    8

    27

    220

    270

    ≥14.5

    ≤300

    ≤6

    12

    36

    220

    270

    ≥12.5

    ≤300

    ≤6

    10

    Degaussing PTC Thermistor Reliability data

    Test

    Standard

    Test conditions

    |ΔR25/R25|

    Switching test at room temperature

    IEC 60738-1

    Vmax; Rs Room temperature Number of cycles: 10000

    <20%

    Life test at Vmax/Top

    IEC 60738-1

    Storage at Vmax/Top for T: 1000h

    <20%

    Rapid change of temperature in air

    IEC600628-2-14, Test Na

    T=TLCT, T=TUCT Number of cycles: 5 T:30min

    <20%

    Climate sequence

    IEC 600628-2-27

    Dry heat: T= TUCT, t:16h Damp heat first cycle Cold: T= TLCT t:2h Damp heat 5 cycles


    Damp heat

    IEC 600628-2-3

    Temperature of air: 40oC Relative humidity of air: 93% Duration: 56 days

    <10%


    Competitive Advantage:


    1. Factory supply directly

    2. Completed certificates such as UL,VDE,SGS,etc and high quality available

    3. Quick delivery

    4. Best after-sales services

    5. OEM & ODM available
