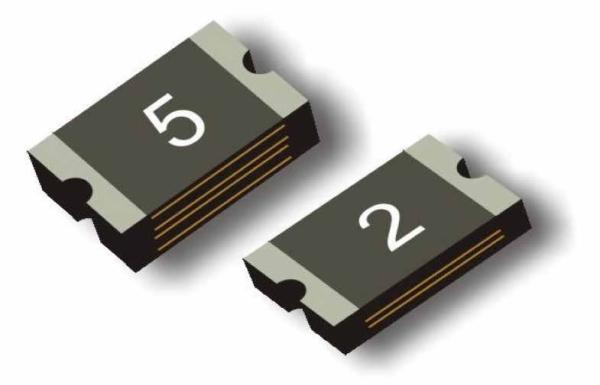

    0603 0.2A Polymeric Positive Temperature Coefficient Resettable Fuse PPTC

    0603 0.2A Polymeric Positive Temperature Coefficient Resettable Fuse PPTC


    Quick Detail:


    ◆ Surface Mount Devices
    ◆ Standard 0603mils footprint
    ◆ Surface mount packaging for automated assembly
    ◆ Compatible with Pb and Pb-free solder reflow profiles.
    ◆ Agency recognition: UL approved

    Description:


    The FSMD0603 Series PTC device provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.

    Applications:


    ◆ Mobile phones- Battery and port protection

    ◆ PC motherboards – Plug and Play protection

    ◆ PDAs/Digital cameras

    ◆ USB port protection

    ◆ HDMI source protection

    ◆ Game console port protection


    Specifications:


    Electrical Characteristics

    P/N








    IH, (A)

    IT,(A)

    Vmax,(v)

    Imax,(A)

    (A)

    (Sec.)

    Pd typ(W)

    Rmin

    R1max

    FSMD010

    0.10

    0.30

    15

    40

    0.50

    1.00

    0.50

    0.90

    6.00

    FSMD020

    0.20

    0.50

    9

    40

    1.00

    0.60

    0.50

    0.55

    3.50

    FSMD035

    0.35

    0.75

    6

    40

    8.00

    0.10

    0.50

    0.20

    1.40

    FSMD050

    0.50

    1.00

    6

    40

    8.00

    0.10

    0.50

    0.10

    0.80

    IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

    IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

    Vmax=Maximum voltage device can withstand without damage at rated current.

    Imax=Maximum fault current device can withstand without damage at rated voltage.

    Ttrip=Maximum time to trip(s) at assigned current.

    Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment.

    Rmin=Minimum device resistance at 25℃ prior to tripping.

    Rmax=Maximum device resistance at 25℃ prior to tripping.


    Product Dimensions & Marking (Unit: mm) :


    P/N

    Marking


    A

    B

    C

    D

    Min.

    Max.

    Min.

    Max.

    Min.

    Max.

    Min.

    FSMD010

    1

    1.45

    1.85

    0.65

    1.05

    0.30

    0.65

    0.20

    FSMD020

    2

    1.45

    1.85

    0.65

    1.05

    0.30

    0.65

    0.20

    FSMD035

    3

    1.45

    1.85

    0.65

    1.05

    0.30

    0.65

    0.20

    FSMD050

    5

    1.45

    1.85

    0.65

    1.05

    0.65

    1.00

    0.20

    Thermal Derating Chart – I hold (Amps)

    P/N

    Ambient Operating Temperature

    -40℃

    -20℃

    0℃

    25℃

    40℃

    50℃

    60℃

    70℃

    85℃

    FSMD010

    0.13

    0.12

    0.11

    0.10

    0.08

    0.07

    0.06

    0.05

    0.03

    FSMD020

    0.27

    0.25

    0.23

    0.20

    0.17

    0.14

    0.12

    0.10

    0.07

    FSMD035

    0.47

    0.41

    0.38

    0.35

    0.29

    0.26

    0.24

    0.20

    0.14

    FSMD050

    0.67

    0.59

    0.54

    0.50

    0.41

    0.37

    0.34

    0.29

    0.20

    Typical time to trip at 25℃

    ◆ The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables.

    Agency Approvals:

    Agency Approvals:UL,CSA,TUV

    Regulation/Standard: RoHS RoHS 2.0(2011/65/CE)


    Package information:

    Model Q’ty/Reel

    FSMD010 ~ FSMD040 6000 pcs

    FSMD050 4000 pcs

    Note: Reel packaging per EIA-481-1 standard
