    0805 SMD Resettable PTC Fuse 0.75A , Polyswitch Resettable Fuse

    0805 SMD Resettable PTC Fuse 0.75A , Polyswitch Resettable Fuse


    Quick Detail:


    ◆ Surface Mount Devices
    ◆ Standard 0805mils footprint
    ◆ Surface mount packaging for automated assembly
    ◆ Compatible with Pb and Pb-free solder reflow profiles.
    ◆ Agency recognition: UL approved

    Description:


    The PSMD0805 Series PTC device provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.

    Applications:


    ◆ Mobile phones- Battery and port protection

    ◆ PC motherboards – Plug and Play protection

    ◆ PDAs/Digital cameras

    ◆ USB port protection

    ◆ HDMI source protection

    ◆ Game console port protection


    Specifications:


    Electrical Characteristics

    P/N








    IH, (A)

    IT,(A)

    Vmax,(v)

    Imax,(A)

    (A)

    (Sec.)

    Pd typ(W)

    Rmin

    R1max

    PSMD010

    0.10

    0.30

    15.0

    40

    0.5

    1.50

    0.50

    1.000

    7.500

    PSMD020

    0.20

    0.50

    9.0

    40

    8.0

    0.02

    0.50

    0.650

    3.500

    PSMD035

    0.35

    0.75

    6.0

    40

    8.0

    0.10

    0.50

    0.250

    1.200

    PSMD050

    0.50

    1.00

    6.0

    40

    8.0

    0.10

    0.50

    0.150

    0.900

    PSMD075

    0.75

    1.50

    6.0

    40

    8.0

    0.20

    0.60

    0.090

    0.350

    PSMD100

    1.00

    2.00

    6.0

    40

    8.0

    0.30

    0.60

    0.060

    0.250

    PSMD110

    1.10

    2.20

    6.0

    40

    8.0

    0.30

    0.60

    0.060

    0.210

    IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

    IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

    Vmax=Maximum voltage device can withstand without damage at rated current.

    Imax=Maximum fault current device can withstand without damage at rated voltage.

    Ttrip=Maximum time to trip(s) at assigned current.

    Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment.

    Rmin=Minimum device resistance at 25℃ prior to tripping.

    Rmax=Maximum device resistance at 25℃ prior to tripping.

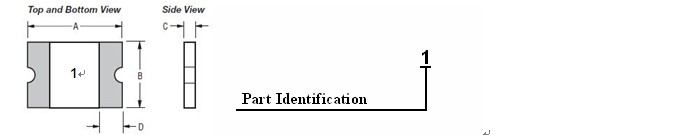

    Product Dimensions & Marking (Unit: mm) :


    P/N

    Marking


    A

    B

    C

    D

    Min.

    Max.

    Min.

    Max.

    Min.

    Max.

    Min.

    PSMD010

    1

    2.00

    2.30

    1.20

    1.50

    0.55

    0.95

    0.20

    PSMD020

    2

    2.00

    2.30

    1.20

    1.50

    0.55

    0.95

    0.20

    PSMD035

    3

    2.00

    2.30

    1.20

    1.50

    0.40

    0.80

    0.20

    PSMD050

    4

    2.00

    2.30

    1.20

    1.50

    0.40

    0.80

    0.20

    PSMD075

    5

    2.00

    2.30

    1.20

    1.50

    0.75

    1.25

    0.20

    PSMD100

    6

    2.00

    2.30

    1.20

    1.50

    0.75

    1.25

    0.20

    PSMD110

    6

    2.00

    2.30

    1.20

    1.50

    0.75

    1.25

    0.20

    Thermal Derating Chart – I hold (Amps)

    P/N

    Ambient Operating Temperature

    -40℃

    -20℃

    0℃

    25℃

    40℃

    50℃

    60℃

    70℃

    85℃

    PSMD010

    0.15

    0.13

    0.12

    0.10

    0.09

    0.08

    0.07

    0.06

    0.05

    PSMD020

    0.28

    0.25

    0.23

    0.20

    0.17

    0.14

    0.12

    0.10

    0.07

    PSMD035

    0.47

    0.44

    0.39

    0.35

    0.30

    0.27

    0.24

    0.20

    0.14

    PSMD050

    0.68

    0.62

    0.55

    0.50

    0.40

    0.37

    0.33

    0.29

    0.23

    PSMD075

    1.00

    0.90

    0.79

    0.75

    0.63

    0.57

    0.53

    0.42

    0.35

    PSMD100

    1.45

    1.35

    1.20

    1.00

    0.92

    0.84

    0.75

    0.65

    0.52

    PSMD110

    1.45

    1.35

    1.20

    1.10

    0.92

    0.84

    0.75

    0.65

    0.52

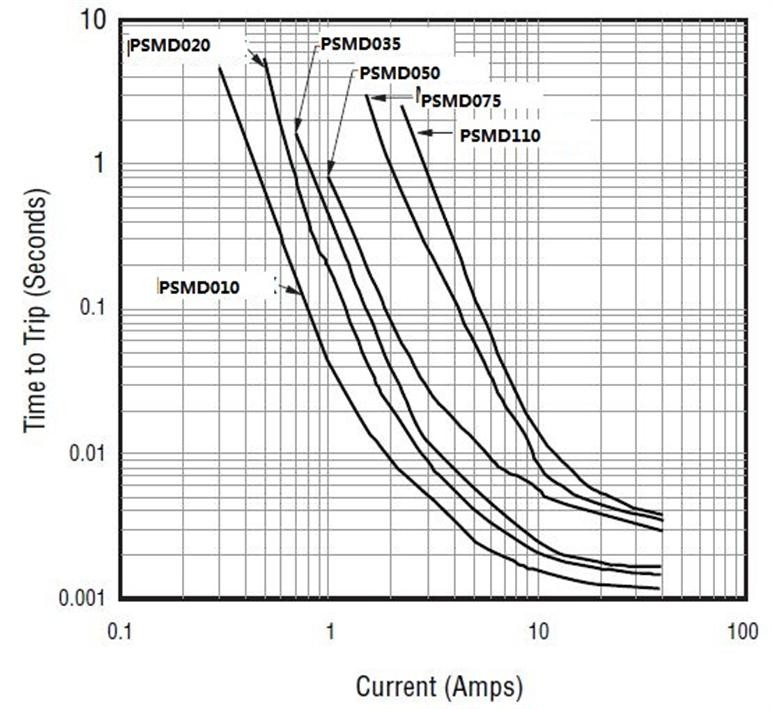

    Typical time to trip at 25℃

    ◆ The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables.

    Agency Approvals:

    Agency Approvals:UL,CSA,TUV

    Regulation/Standard: RoHS RoHS 2.0(2011/65/CE)


    Package information:

    Model Q’ty/Reel

    PSMD010/PSMD020/PSMD075/PSMD100/PSMD110 3500 pcs

    PSMD035/PSMD050 4500 pcs

    Note: Reel packaging per EIA-481-1 standard
