NTC Chip Thermistor With Insulated Flexible Wires , NTC Temperature Sensor

    Buy cheap NTC Chip Thermistor With Insulated Flexible Wires , NTC Temperature Sensor from wholesalers

    Buy cheap NTC Chip Thermistor With Insulated Flexible Wires , NTC Temperature Sensor from wholesalers
    • Buy cheap NTC Chip Thermistor With Insulated Flexible Wires , NTC Temperature Sensor from wholesalers

    NTC Chip Thermistor With Insulated Flexible Wires , NTC Temperature Sensor

    Ask Lasest Price
    Brand Name : UCHI
    Certification : ROHS,SGS
    Model Number : CWF103F-3950F
    Price : Negotiable
    Delivery Time : 7 working days
    Payment Terms : T/T,Paypal,Western Union,Money gram
    Supply Ability : 8000,000,000PCS Per Month
    • Product Details
    • Company Profile

    NTC Chip Thermistor With Insulated Flexible Wires , NTC Temperature Sensor

    NTC Chip Thermistor With Insulated Flexible Wires , NTC Temperature Sensor


    Quick Detail:


    Suitable for surface temperature measurement
    Sensing element electrically isolated from tag
    Two standard resistance values: 10 kΩ & 20 kΩ nominal at 77°F (25°C)
    Eyelets to fit M3, M4 & M5 screw sizes
    Range of wire lengths 1.97 in to 78.74 in (50 mm to 2000 mm)
    Typical applications include semiconductor heatsinks, enclosure panels

    Description:


    NTC chip thermistor with insulated flexible wires and housed in an eyelet tag.


    Applications:


    • Extremely rugged sensor consisting of a hex head machine screw that can be fastened into drilled and tapped holes.


    Specifications:


    Options

    • Other resistance - temperature characteristics
    • Other wire types

    Data

    • R25: 10 KΩ ± 5% (JR103R5MxLxxx) 20 KΩ ± 5% (JR203R5MxLxxx)
    • B 25/85: 3977 K ± 0.75%
    • Temperature range: -22°F to 221°F (-30°C to 105°C)
    • Insulation resistance: 500 VDC
    • Wire conductors: Tin-plated copper 7 x 0.1 mm diameter
    • Wire insulation: Irradiated PVC
    • Pack quantity and MOQ: 200 pcs

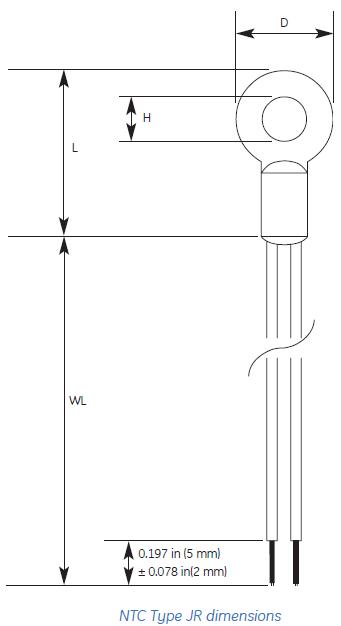

    ntc-JR_dim

    Temperature
    °C
    Rt/R25 Nominal
    Ω
    Resistance Tolerance
    ± %
    Temperature Tolerance
    ± °C
    -209.68076.801.17
    -157.28096.581.17
    -105.52536.351.17
    -54.22926.141.17
    03.26405.941.16
    52.53915.741.16
    101.99025.541.16
    151.57135.361.15
    201.24935.181.15
    251.00005.001.14
    300.80565.171.21
    350.65305.341.29
    400.53255.501.37
    450.43675.651.45
    500.36015.811.53
    550.29855.961.61
    600.24876.101.69
    650.20826.241.78
    700.17516.381.87
    750.14806.521.96
    800.12566.652.05
    850.10706.772.15
    900.091556.902.24
    950.078647.022.34
    1000.067817.142.44
    1050.058687.262.54
