IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper

    Buy cheap IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper from wholesalers

    Buy cheap IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper from wholesalers
    • Buy cheap IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper from wholesalers

    IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper

    Ask Lasest Price
    Brand Name : UCHI
    Certification : ROHS,SGS
    Model Number : CWF103F-3950F
    Price : Negotiable
    Delivery Time : 7 working days
    Payment Terms : T/T,Paypal,Western Union,Money gram
    Supply Ability : 8000,000,000PCS Per Month
    • Product Details
    • Company Profile

    IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper

    IP66 Cable Probe Temperature Sensors Long-term Stability With Aluminum , Brass , Copper


    Quick Detail:


    IP66 rated
    Long-term stability
    Multiple connectors available
    Good thermal response time
    Various cable lengths
    Aluminum, Brass, Copper and PVC sleeve housing options
    Maximum temperature to +105°C

    Description:

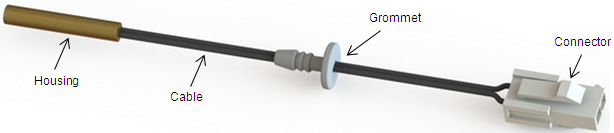

    UCHI has a breadth of high volume core temperature sensing products for Industrial HVACR applications. UCHI's range of Thermometrics Cable Probe Temperature Sensors consist of resin potted NTC thermistors encapsulated within metal housings, extension cables and connector systems. These sensors have been used in industrial applications for decades with a proven robust quality record in the field.


    Applications:


    Water heating
    Refrigeration
    Air conditioning systems

    Specifications:


    Part NumberHousing
    Material
    Housing
    Dimensions
    / mm
    Resistance at
    (T ref ) / Ω
    B (25/85) / KCable
    description
    Cable
    length / mm
    JS4710Brass5x3012,000 (25)
    950 (100) ±5%
    3740 ±1%PVC (single ins)300
    JS6234Brass5x3012,000 (25)
    950 (100) ±5%
    3740 ±1%PVC (single ins)1500
    JS6957Brass5x3012,000 (25)
    950 (100) ±5%
    3740 ±1%PVC (single ins)135
    JS8042Brass5x3012,000 (25)
    950 (100) ±5%
    3740 ±1%PVC (single ins)300
    JS4833Brass5x3010,000 (25) ±1%3977 ±0.75PVC (single ins)1485
    JS4832Brass5x3010,000 (25) ±1%3977 ±0.75PVC (single ins)1235
    JS5514Brass5x3010,000 (25) ±3%3977 ±0.75PVC (single ins)840
    JS5515Brass5x3010,000 (25) ±3%3977 ±0.75PVC (single ins)840
    JS4676Aluminium5.8x2610,000 (25)3960 ±1%PVC (single ins)300
    JS3686PVC Sleeve-10,000 (25)3960 ±1%PVC (single ins)700
    JS5446Aluminium5.8x2610,000 (25)3960 ±1%PVC (single ins)800
    JS7231Copper6.5x3210.000 (25) ±3%3977±0.75%PVC (single ins)1000 & 2000

    Part NumberConnector systemGrommetSeries Resistor / ΩMax Temp / ºCV(ac) strength/
    V (1mA)
    IP Rating
    JS4710Molex 5559YesNo105750IP66
    JS6234Molex 5559YesNo105750IP66
    JS6957Molex 5559YesNo105750IP66
    JS8042Molex 5559NoNo105750IP66
    JS4833Polehousing
    CTH1300/2
    YesNo1051500IP66
    JS4832Polehousing
    CTH1300/2
    YesNo1051500IP66
    JS5514Polehousing
    CTH1300/2
    Yes3301051500IP66
    JS5515Polehousing
    CTH1300/2
    Yes4701051500IP66
    JS4676Molex 5559NoNo105750IP66
    JS3686Molex 5559NoNo105750IP66
    JS5446Molex 5559NoNo105750IP66
    JS7231-NoNo105750IP66

    Competitive Advantage:


    1. Factory supply directly
    2. Completed certificates such as UL,VDE,SGS,etc and high quality available
    3. Quick delivery
    4. Best after-sales services
    5. OEM & ODM available
