    Calibrations Type CSP NTC Temperature Sensors Various Calibration Temperature Ranges

    Calibrations Type CSP NTC Temperature Sensors Various Calibration Temperature Ranges


    Quick Detail:


    Ultrastable
    Calibrated to 0.01°C accuracy
    Suitable for liquid immersion
    Various calibration temperature ranges, lead lengths and coatings available

    Description:


    The Type CSP Temperature Standards are ultrastable probe thermistors which have been calibrated to an accuracy of 0.01°C. The standard unit has a thin, conformal coating of silicone rubber over the entire unit; this makes it suitable for immersion in a water bath. They are also available with stainless steel sensor housings, or they can be encapsulated into various sheaths.

    Applications:


    All units can be supplied with calibrations over different temperature ranges, with longer leads; and with various coatings.


    Specifications:


    Two types of CSP Thermoprobes are stocked for quick delivery: the CSP60BA252M with a nominal resistance of 2500 ohms @25°C; it is furnished with calibration over the range of 0° to 50°C. The CSP60BT103M has a nominal resistance of 10K ohms @25°C and is furnished with calibration over the range of 0° to 100°C. The calibration table normally furnished with the CSP60BA252M provides data every 0.25°C between 0° and 50°C. The table furnished with the CSP60BT103M provides data every 0.5°C over the range of 0° to 100°C. Both units are furnished with interpolation equations which are accurate to 0.01°C. Tables with calibration data furnished every 0.01, 0.05 or 0.1°C are also available.


    csp-1

    TEMPERATURE STANDARDS - TYPE CSP

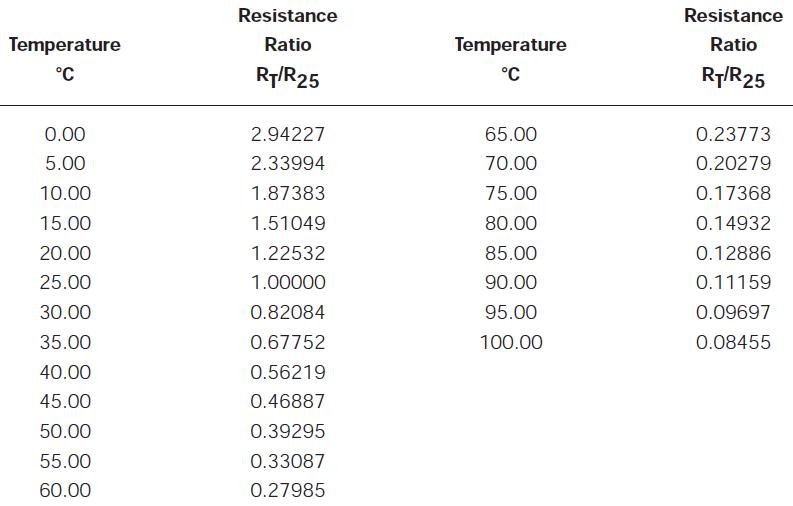

    Nominal Curve for CSP60BT103M

    csp-2


    CODING

    ORDERING CODE DESCRIPTIONCSP60BA252M Nominal resistance 2500 ohms @ 25°C, calibration table every 0.25°C between 0 and 50°C
    CSP60BT103M Nominal resistance 10K ohms @ 25°C, calibration table every 0.5°C between 0 and 100°C
    OPTIONSA113 - CSP60B = Standard in vinyl tubing (60°C Maximum Temperature)
    A207A - CSP60B = Standard in open tip stainless steel housing.
    A733F - CSP60B = Standard in closed end stainless steel housing.

    Competitive Advantage:


    1. Factory supply directly

    2. Completed certificates such as UL,VDE,SGS,etc and high quality available

    3. Quick delivery

    4. Best after-sales services

    5. OEM & ODM available
