BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light

    Buy cheap BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light from wholesalers

    Buy cheap BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light from wholesalers
    • Buy cheap BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light from wholesalers
    • Buy cheap BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light from wholesalers
    • Buy cheap BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light from wholesalers
    • Buy cheap BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light from wholesalers

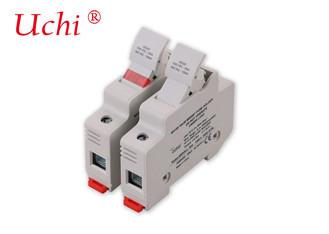

    BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light

    Ask Lasest Price
    Brand Name : ADLER
    Model Number : BH100/BH101
    Certification : ROHS etc.
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 5000,000PCS/Month
    Delivery Time : 4 weeks
    • Product Details
    • Company Profile

    BH100 BH101 10x38mm 1000VDC Ceramic Glass Fuses Holder With Indicator Light


    DIN Rail Mounting BH100 BH101 10x38mm 1000VDC 0-50A 30KA Ceramic Glass Fuse Holder With Indicator Light


    Ceramic Glass Fuse Holder With Indicator Light BH100&BH101_datasheet_20161112.pdf


    Features


    ADLER BH100 and BH101 holders are designed for A73 series and standard 10x38mm PV fuses. The
    BH101 holder is equipped with a red indicator light. It will light up when the inserted fuse is blown.


    Description


    The BH100 and BH101 holder applies to 10x38mm fuse.

    The BH100 holder without indicator light,BH101 holder with indicator light.

    When the fuse burn-out the light will be light up.


    Specifications


    Rated Voltage1000VDC/600VDC
    Rated Current0-50A
    Withstand rating,DC Amperes30KA/10KA
    Material FlammabilityUL 94-V0(PBT)/ UL91-VS(PA6)
    Neon Light Indicator in case of over-current fault(optional)min 90VAC
    MountingDIN Rail mounting
    Wire diameters0.8mm² – 6.0mm²
    Ambient temperature-40°C ~ +130°C

    Dimension in mm



    Related Product Range


    Environmental


    About Manufacturer


    Company Name: ADLER Elektrotechnik Leipzig GmbH
    Location: Leipzig, Saxony, Germany
    Expertise: Design, Marketing and Sales of electrical, EV and Photovoltaic protection


    Our product range includes:


    • Low voltage fuses500VDC 5A-40A 6KA 10x38mm Germany ADLER AE2 EV Automotive And Charger Fuse Link
    • NH blade fuses for general industrial application (gG)
    • Medium voltage fuses up to 36kV
    • Power protection solutions
    • Photovoltaic midget and medium fuse links
    • Photovoltaic NH fuses in various sizes (gPV)

    • PV Surge Protection Devices (SPD)
    • PV Combiner Boxes and Parts
    • Fuse holders, mounting bases

    Across all of our product range, we are proud to represent established, certified products that have developed a reputation for quality, reliability and innovation. Please refer to our brand and datasheets available from our website for a more detailed overview of our products.
    We provide our customers with solutions expertise, a high standard of personalized service, availability of stock and an 'easy to deal with' experience.


    Our Mission:
    We add value to our customer's business by supplying quality specialist electrical products, solutions-focused expertise, personal service and genuine customer care at highest possible standards in our industry.


    500VDC 5A-40A 6KA 10x38mm Germany ADLER AE2 EV Automotive And Charger Fuse Link
