    IEC60269 AS8 gPV NH3L Class gPV Cylindrical Fuse Links 1000VDC 65W 125~400A 30KA

    Ask Lasest Price
    Brand Name : ADLER
    Model Number : AS8 gPV NH3L
    Certification : IEC etc.
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 5000,000PCS
    Delivery Time : 4 WEEKS
    • Product Details
    • Company Profile

    IEC60269 AS8 gPV NH3L Class gPV Cylindrical Fuse Links 1000VDC 65W 125~400A 30KA


    IEC60269 AS8 gPV NH3L Class gPV Cylindrical Fuse Links 1000VDC 65W 125~400A 30KA


    Cylindrical Fuse Links AS8_datasheet_20161109.pdf


    Description


    • The AS8 series fuse links are made according to specifications for use with rated working voltage of 1000V DC and rated working currents of 125~400A for overload or short circuit protection.
    • The fuse body shape for the square tube, internal variable load made of pure silver belt surface conductor, encapsulated in the ceramic tube of high temperature resistant, high strength, and pack enough high silicon quartz sand as fillers, arcing medium role.
    • This series fuse to protect and isolate PV junction box and isolating switch.These fuse breaking failure PV array (reverse current, line array fault) produced by low overload current.

    Feature


    1. Rated Voltage: 1000V DC, class gPV
    2. Rated Current: 125~400A
    3. Rated Breaking Capacity: 30 kA
    4. Max. Dissipation: 65W
    5. Standard: IEC60269

    ELECTRICAL SPECIFICATIONS


    Part NumberRated CurrentI2T(A2s)Max.Dissipation(W)
    Pre-Arc

    Total@

    Rated

    Voltage

    70% In100% In
    AS83250700250A220009500075100
    AS83315700315A2772011970075100
    AS83350700350A3080013300075100
    AS83450700450A396001710075100
    AS83500700500A4400019000075100
    AS83630700630A5544023940075100

    Dimension



    TIME/ CURRENT (I-T) CHART (reference) & CURRENT LIMITING-CURRENT (reference)



    MATCHING FUSE HOLDERS/ ACCESSORIES:

    Holders NH3L/NH2XL Series.

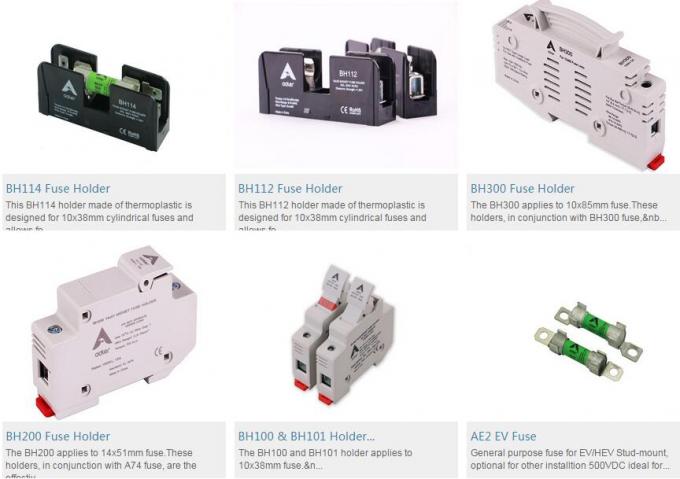

    Related Product Range
