    CQC UL CUL Approved MF52 Pearl Shape NTC Thermistor 2K2 2.7KOhm 3950 For Automobile Air Conditioner

    Ask Lasest Price
    Brand Name : SHIHENG
    Model Number : MF52
    Certification : UL,CUL,CQC
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 2.4 Billion Pieces Per Year
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    CQC UL CUL Approved MF52 Pearl Shape NTC Thermistor 2K2 2.7KOhm 3950 For Automobile Air Conditioner


    CQC UL CUL Approved MF52 Pearl Shape NTC Thermistor 2K2 2.7KOhm 3950 For Automobile Air Conditioner


    PDF Specification File Download Link : CQC UL CUL Approved MF52 Pearl Shape NTC Thermisto...


    General

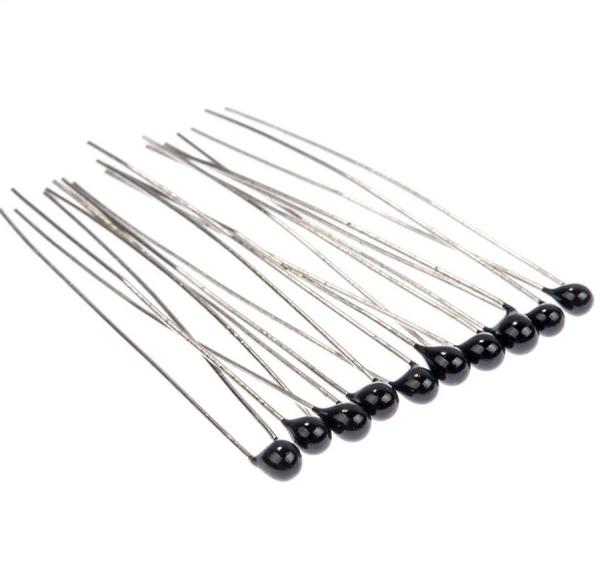

    Pearl-Shaped Precision NTC Thermistor for Temperature Measurement The MF52 series of Pearl-Shaped NTC Thermistors is ethoxyline resin coated. The small size is made possible by new materials and manufacturing methods which provide the benefit of close tolerances and fast response. MF52 thermistors are available with 5 lead styles in standard or custom lengths.



    Features


    Small Size and fast response
    Long-term stability and reliability
    Excellent tolerance and interchangeability


    Characteristics


    Small Size and fast response
    Available tolerances: ±1%, ±2%, ±3%, ±5% and ±10%
    Long-term Stability and Reliability
    Excellent Tolerance and Interchangeability
    Available in all popular resistance values
    Dissipation Constant ≥2.0mW/°C
    Time Constant of ≤7 seconds in still air
    Available in custom probes
    Operating Temperature Range: -40 ~ + 125℃


    Application

    Heating, ventilation and air conditioning
    Temperature regulation and measurement
    Electronic thermometers
    Liquid level sensing
    Automotive electronics
    Medical equipment and apparatus
    Battery packs and portable electronics


    Specifications

    B25/50:3100K ~ 4500K
    Mounting Type:Through Hole
    Operating Temperature:-40°C ~ 125°C
    Package / Case:Bead
    Packaging:Bulk
    Power - Max:50mW
    Resistance in Ohms @ 25°C:0.1k ~ 1000 KOhm


    Part No.Rated Resistance
    R25
    (KΩ)
    B Value
    (25/50)
    (K)
    Rated Power(mw)Dissi. Coef.
    (mW/)
    Thermal time Constant(S)Operating Temp.()
    MF523100
    MF523270
    MF523380
    MF523470
    MF523600
    MF523950
    MF524000
    MF524050
    MF524150
    MF524300
    MF524500
    0.1-20
    0.2-20
    0.5-50
    0.5-50
    1-100
    5-100
    5-100
    5-200
    10-250
    20-1000
    20-1000
    3100
    3270
    3380
    3470
    3600
    3950
    4000
    4050
    4150
    4300
    4500
    ≤ 50≥ 2.0


    In Still Air
    ≤ 12


    In Still Air
    -40℃ - +125℃

    Dimension (Unit:mm)


    A: Tin. Ag. nickel plated cu wire


    CodeD
    max
    L1
    max
    L2
    min
    d
    +/- 0.05
    F
    +/- 0.5
    A12.54.0250.31.7
    A234.5250.452.2

    B: Enamelled cu wire


    CodeD
    max
    L1
    max
    L2
    min
    L3+/- 1d
    +/- 0.05
    B123.5Customer Specified30.2
    B234Customer Specified30.3

    C: High temp fluorin-plastic wire


    CodeD
    max
    L1
    max
    L2
    min
    L3+/- 1d
    +/- 0.05
    C137.5Customer Specified50.26
    C247.5Customer Specified50.32

    D: PVC Wire

    CodeD
    max
    L1
    max
    L2
    min
    L3+/- 1Cable #
    D137.5Customer Specified530#
    D247.5Customer Specified528#

    E: Lead and head according to specification


    CodeD
    max
    L1
    max
    L2
    min
    L3+/- 1d
    +/- 0.05
    E1Customer SpecifiedCustomer SpecifiedCustomer Specified5Customer Specified
    E2Customer SpecifiedCustomer SpecifiedCustomer Specified5Customer Specified

    DE : CP lead coated with epoxy resin


    CodeD
    max
    L1
    max
    L2
    max
    L3d
    +/- 0.05
    F
    +/- 0.5
    DE136.055Customer Specified0.3/
    D247.535Customer Specified0.45
    /

    F: Tinned Lead-Frame Style

    Code

    D
    max

    L1
    max

    L2 +/- 1.5

    d
    max

    F
    +/- 0.5

    Tmax

    F

    3.8

    9.5

    17

    0.5

    2.5

    3.5
