    MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950

    Ask Lasest Price
    Brand Name : SHIHENG
    Model Number : MF51
    Certification : ROHS etc.
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 50 Million Pieces per year
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950


    MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC Thermistor 100K 3950


    PDF Specification File Download Link : MF51 Temperature Measurement Radial Glass Hermetic...


    Specifications


    • R25(Ω):2K~1500K
    • Use:Air-Conditioner. Heating Apparatus
    • Glass hermetic encapsulation with high resistance to humid environments
    • Wide operating temperature range
    • High stability and performance in harsh environmental conditions
    • Fast response time
    • RoHS Compliant

    The NTC Chip hermetically sealed in a glass encapsulation package



    Features


    • Hermetically sealed glass package
    • Proven Stability and Reliability
    • Available in ±1%, ±2%, ±3%, ±5% and ±10% tolerance @ +25ºC
    • Fast time response
    • Low cost
    • Temperature range -40ºC to +250ºC

    Application


    1. Air conditioning systems
    2. Refrigeration control
    3. Assembly into probes for a wide variety of applications
    4. In environments where thermal shock and humidity are present
    5. Hot water boiler systems
    6. Sensor for engine temperature control

    Dimension (mm)


    Part numberDHLd
    MF51-A2.0±0.23.8±0.5≥400.25±0.02
    MF51-B1.6±0.23.2±0.5≥600.25±0.02
    MF51-C1.2±0.22.4±0.5≤600.25±0.02

    Performance Specs


    Part number

    Dissi.Coef.

    mW/℃

    Thermal time constant

    sec

    Pmax

    mW

    MF51-A≈1.4≈1450
    MF51-B≈0.9≈735
    MF51-C≈0.75≈515

    Reliability Test


    Reliability TestsStandardTest ConditionDelta R
    Storage in Dry HeatIEC 60068-2-2Storage temperature: +250°C
    Duration: 1000 hours
    < 3%
    Storage in Damp HeatIEC 60068-2-3

    Temperature of air is 50°C & RH 95%

    Duration: 56 days.

    < 2%
    Rapid Temperature CyclingIEC 60068-2-14Lower Test Temperature -55°C
    Upper Test Temperature +200°C
    Number of Cycles 1000
    < 2%

    Related products info



    Manufacture Process

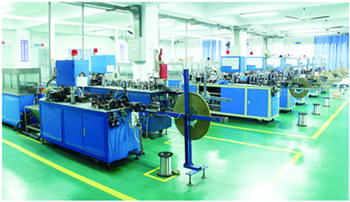

    Workshop of high quality and high performance NTC Thermistor


    We have the unique process and leader core technology with proprietary intellectual property rights of ceramic powder equipment,made of chips,high performance NTC Automatic batch production.
    We have more than 12 series of high performance NTC thermistors automatic production line,products have the advantages of large production,high quality,good coherence,high reliability,besides it can be made of many kinds of NTC temperature sensors,it also can be supplied to other factories of NTC sensors,and exported in large quantities to overseas.
