    MTC Series Radial Leaded Time Delay Plug Fuse 250V 300V Mini Size Box Type

    Ask Lasest Price
    Model Number : MTC
    Certification : UL,VDE,CQC,KC,PSE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 700000pcs per week
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    MTC Series Radial Leaded Time Delay Plug Fuse 250V 300V Mini Size Box Type


    UL VDE CQC KC PSE Mini Size Box Type MTC Series Radial Leaded Time Lag Micro Fuse With Voltage Ratings 250V 300V

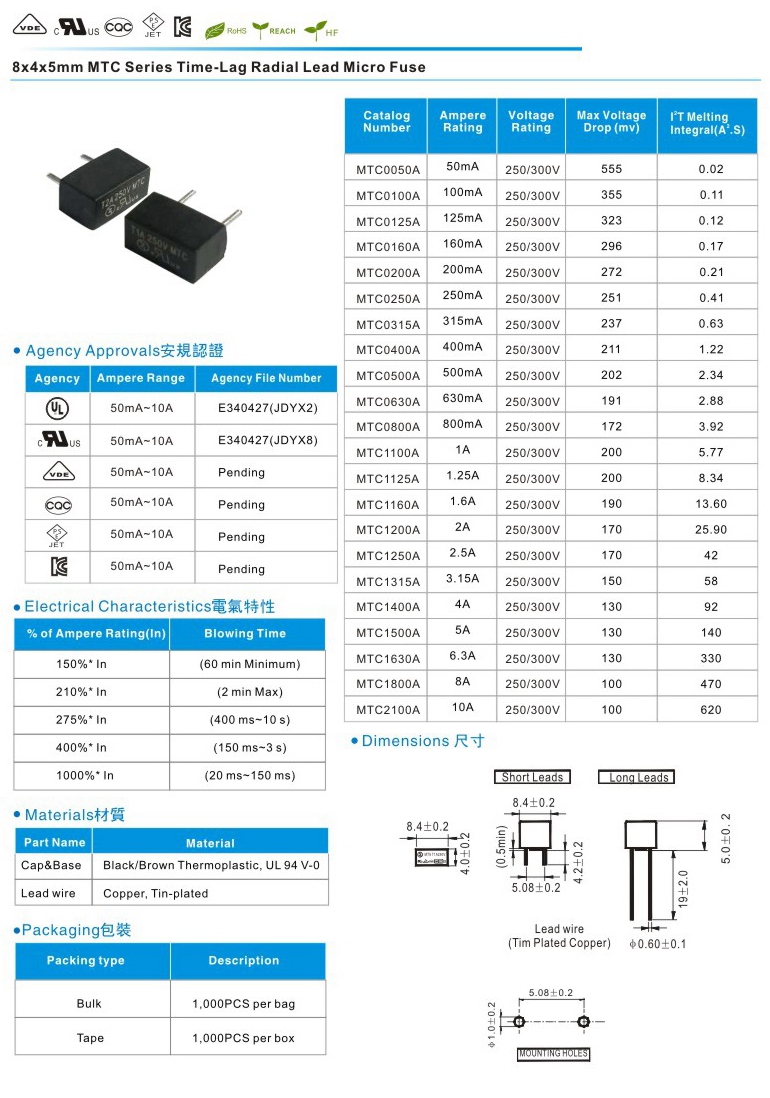

    PDF datasheet download link : UL VDE CQC KC PSE Mini Size Box Type MTC Series Ra...


    Quick details


    Fuse speedF
    Wire diameter0.6mm
    Body materialThermoplastic Polyamide PA 6.6, UL 94 V-0
    Lead OrientationRadial
    Maximum Operating Temperature+85°C
    Minimum Operating Temperature-40°C
    Body Height8mm
    Body Diameter8.5mm
    Current Rating50mA-10A
    Wire Length19mm
    Wire Pitch5.08mm
    Voltage Rating250V or 300V
    Breaking Capacity at Maximum Voltage Rating35A
    Application scope
    Suitable for various kinds of electronic devices’ circuit over current protection. Widely
    used in industrial of Battery Charges, Consumer Electronics, Power supplies, Industrial Controllers,
    etc.
    Standards and Agency Approvals
    Standards : In accordance with IEC60127-1, IEC60127-3 Standard sheet4, GB9364.1-1997,
    GB9364.3-1997.
    Certification
    AgencyRangeFile Number
    UR50mA~6.3AE340427(JDYX2)
    C-UR50mA~6.3AE340427(JDYX8)
    VDE50mA~6.3A40039420
    CQC50mA~6.3ACQC16012154495
    PSE50mA~6.3APSE16021073
    KC50mA~6.3ASU05052-16004/16005/16006

    Specification

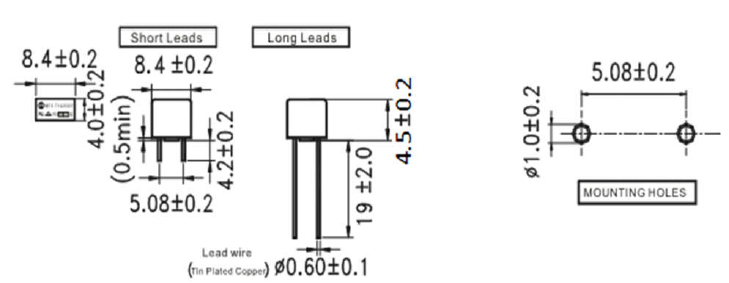

    Dimension in mm



    Operating Characteristics


    % of Ampere Rating(In)Blowing Time
    150%* In60 min Minimum
    210%* In2 min Max
    275%* In400 ms~10 s
    400%* In150 ms~3 s
    1000%* In20 ms~150 ms

    Average Time Current Curves
