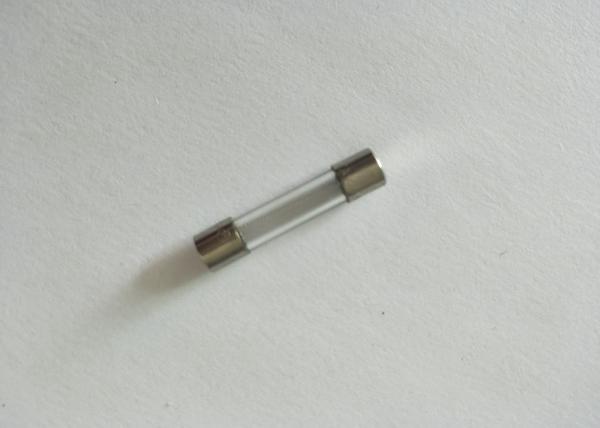

    MTC Series Time Lag Cartridge Glass Fuses 6.3mm X 32mm Rated 3Amp 250V

    Ask Lasest Price
    Model Number : MTC Series
    Certification : UL,CUL,PSE,KTL
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100,000pcs per day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    MTC Series Time Lag Cartridge Glass Fuses 6.3mm X 32mm Rated 3Amp 250V


    High Quality MTC Series Glass Cartridge Fuses 6.3mm x 32mm Rated 3Amp 250V To Avoid Short Circuits And Power Surges


    PDF Datasheet Download Link : High Quality MTC Series Glass Cartridge Fuses 6.3...


    Description

    MTC Series glass cartridge fuses designed to provide current protection for all kinds of electronic equipments such as power supply, UPS,LED lighting etc,to avoid Short Circuits And Power Surges then damage other components on PCB board.It is widespread with cheap cost but good function
    .


    Features

    Wide current range
    Customzation available
    Short lead time 7-10 days for bulk order , 3 days for samples
    Very cheap than other brand such littelfuse
    Non-stopped after-services
    Cheaper price with bigger quantity


    Dimension Unit:mm




    Specification

    Catalog
    No.

    Ampere
    Rating

    Voltage
    Rating

    Breaking
    Capacity

    I2TMelting
    Integral(A2.S)

    MTC0100A/B100mA250V/125V

    10000A@125 V AC (100mA~10A);

    35A@250V AC (100mA~1A);

    100A@250V AC (1.25A~3.5A);

    200A@250V AC (4A~10A).

    0.028
    MTC0160A/B160mA250V/125V0.075
    MTC0200A/B200mA250V/125V0.12
    MTC0250A/B250mA250V/125V0.15
    MTC0300A/B300mA250V/125V0.19
    MTC0315A/B315mA250V/125V0.22
    MTC0350A/B350mA250V/125V0.29
    MTC0400A/B400mA250V/125V0.28
    MTC0500A/B500mA250V/125V0.52
    MTC0630A/B630mA250V/125V0.87
    MTC0750A/B750mA250V/125V1.1
    MTC0800A/B800mA250V/125V1.4
    MTC1100A/B1A250V/125V3.5
    MTC1125A/B1.25A250V/125V7.6
    MTC1150A/B1.5A250V/125V9.1
    MTC1160A/B1.6A250V/125V13
    MTC1200A/B2A250V/125V20
    MTC1250A/B2.5A250V/125V39
    MTC1300A/B3A250V/125V61
    MTC1315A/B3.15A250V/125V56
    MTC1350A/B3.5A250V/125V70
    MTC1400A/B4A250V/125V104
    MTC1500A/B5A250V/125V148
    MTC1600A/B6A250V/125V173
    MTC1630A/B6.3A250V/125V192
    MTC1800A/B8A250V/125V380
    MTC2100A/B10A250V/125V580
    MTC2120A/B12A250V/125V723
    MTC2150A/B15A250V/125V934
    MTC2200A/B20A250V/125V1280
    MTC2250A/B25A250V/125V1678
    MTC2300A/B30A250V/125V2036



    Product Characteristics


    a. Lead Pull Strength:5N for 10±1 Seconds

    b. Lead Thrust Strength: 2N for 10±1 Seconds

    c. Solder ability
    Wave : 260℃,≤3s;
    Soldering Iron: 350±10℃,≤3s.

    d. Soldering Heat Resistance
    Wave : 260℃,10s;
    Soldering Iron: 350℃,5s.


    Electrical Characteristics

    Test Condition

    All electrical test is to be conducted with the ambient air at a temperature of 25±5℃.

    Load capacity

    When the fuse loads through 100% of rated current, should blow within 4 hours.

    Interrupting Rating

    Breaking Capacity:

    10000A at125 V AC (MTC In range 100mA~10A);

    35A at 250V AC (MTC In range 100mA~1A);

    100A at 250V AC (MTC In range 1.25A~3.5A);

    200A at 250V AC (MTC In range 4A~10A).

    Rising Temperature Test

    When the 100% times of Ampere Rating passes the fuse, after reaching thermal balance , the temperature on the fuse surface rising shall not be higher than 75℃. Note: Rising temperature = the Surface temperature - Ambient temperature.



    Fusing time

    % of Ampere Rating(In)

    Blowing Time

    100%* In4 hours Min
    135%* In1 hour Max
    200%* In120 sec Max
    1000%* In10ms Min



    Average Time Current Curves

    Time in second

    Current in amperes
