    Double Faced Adhesive Tape Wireless Charging Coil With Ferrite , Round Shape

    Ask Lasest Price
    Brand Name : uchi
    Model Number : WX5010-6R3K26L
    Certification : UL ROH
    Price : USD
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 10000000
    • Product Details
    • Company Profile

    Double Faced Adhesive Tape Wireless Charging Coil With Ferrite , Round Shape

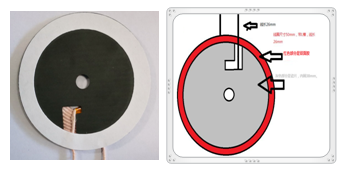

    Double faced adhesive tape wireless charging coils assembly WX5010-6R3K26L for mobile phone and notebook



    1.DIMENSIONS(MM)

    A(mm)50.0+/-1.0
    B (mm)20.5+/-0.5
    C(mm)1.5~3.0
    C1(mm)26+/-2.0
    D(mm)5.3+/-0.3
    E(mm)8.0Ref
    F(mm)2.7Max
    H(mm)43+/-1.0



    2.MATERIAL:

    a. CORE:PC95*1.0 notching "L"
    b.WIRE:∮0.08*105P*10.5TS
    c.Sn:Sn99.3% Cu:0.7%
    d.Yellow adhesive:1603
    e.tape maroon mylar tape (8.0mm width)

    f.double faced adhesive tape





    3.ELECTRICAL DIAGRAM:




    4. ELECTRICAL CHAR ACTERISTIC:

    ITEMSPECTEST EQUIPMENTTEST CONDITION
    L6.3uH+10%WK5237 OR EQU100KHz/0.25V
    DCR60(mΩ)MAX502BC
    Q Value)70 MinWK5237 OR EQU100KHz/0.25V



    5.SPECIFICATION NO:

    WX 5010 -6R3 K 26L
    ① ② ③ ④ ⑤
    ①Product symbol:
    ②Dimmensions:
    ③Inductance : 2R2:2.2μH, R47:0.47μH,310:31uH,501:500uH,152:1.5mH
    ④Tolerance: J-±5% K-±10% M-±20% N-±30% P-MIN
    ⑤Length of Lead:06L: 6MM , 26L:26MM










    6.TEST DATA:

    ELECTRICAL CHARACTERISTIC
    ITEML(μH)DCR(mΩ)Q
    SPEC6.3+/-10%60MAX70 Min
    16.5836.299.7
    26.5436.196.6
    36.5435.698.5
    46.513698.6
    56.473798.9
    X6.52836.1898.46
    R0.111.43.1



    7.PACKAGING

    a.quantity
    b.packaing dimensions(mm)

    used PE packing
    LWH
    350MAX350MAX170MAX
    c: Storage
    Please be sure to the parts at 35℃or less,70%RH or less,and isolate the parts from sulphic and chloric atm osphere

    8.RELIABILITY TEST

    .1.STORAGE TEMPERATURE:


    -40℃~85℃

    .2.OPERATING TEMPERATURE RANGE :


    -40℃~+85℃(CONTAIN HEATING COIL)

    -40℃~+85℃

    3.EXTERNAL APPEARANCE :


    NO EXTERNAL DEFECTS CAN BE FOUND IN THE VISUAL INSPECTION.

    4. TERMINAL STRENGTH :

    FIXED INDUCTORS,ONE END OF THE ELECTRODE WITH 0.45KG PULLING FORCE,GUIDED THE NEEDLE DOES NOT FALL OFF.


    5.INSULATING RESISTANCE :


    THE INSULATION RESISTANCE SHOULD BE OVER 1000MΩ WHEN D.C.100V IS APPLIED TO THE WINDING –CORE. MEANWHILE NO STRUCTURE AND ELECTRIC DEFECTS SHOULD BE FOUND FOR 1 MINUTE.


    6. HUMIDITY TEST :


    INDUCTANCE DEVIATION IS WITHIN ±10.0% AND NO STRUCTURE AND ELECTRIC DEFECTS CAN BE FOUND AFTER 96±2hours TEST UNDER THE CONDITIONOF RELATIVE HUMIDITY OF 90~95% AND TEMPERATURE OF 40±5℃. AND 1 HOUR STORAGE UNDER ROOM AMBIENT CONDITIONS AFTER THE DEVICE IS WIPED WITH DRY CLOTH.


    7. VIBRATION TEST :


    INDUCTANCE DEVIATION IS WITHIN ±10.0% AFTER 1 HOUR SWEEPING VIBRATION IN EACH THREE DIRECTIONS. NAMELY, FREQUENCY IS10~55Hz ANDTHE AMPLITUDE OF 1MINUTE CYCLE IS 1.5mm .
