    Wireless Charging Power Inductor Coil / Copper Induction Coil DD46.5*51.5*0.8 Core

    Ask Lasest Price
    Brand Name : uchi
    Model Number : PCW-465108-7R0K2
    Certification : UL ROH
    Price : USD
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 10000000
    • Product Details
    • Company Profile

    Wireless Charging Power Inductor Coil / Copper Induction Coil DD46.5*51.5*0.8 Core

    Notching L wireless charging coils assembly PCW-465108-7R0K2 for smart tv or phone charger and notebook

    1.DIMENSIONS(MM)

    A(mm)52.0+/-1.5
    B (mm)48.0+/-1.5
    C(mm)4.0Ref
    C1(mm)20+/-1.5
    D(mm)26.5+/-1.5
    E(mm)17.5+/-1.0
    F(mm)0.5REF
    G(mm)12.0+/-2.0
    H(mm)4.8Max
    W(mm)93.5+/-1.5



    2.MATERIAL:

    a. CORE:DD46.5*51.5*0.8
    b.WIRE:∮0.08*105P*9.5TS

    The inner diameter:26*17.5(MM)
    c.Sn:Sn99.3% Cu:0.7%
    d.Yellow adhesive:1603
    e.tape maroon mylar tape (8.0mm width)

    f.The back glue:PE93*51.5

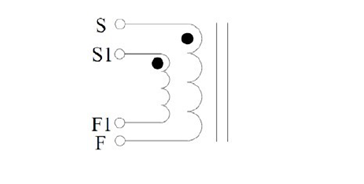

    3.ELECTRICAL DIAGRAM:




    4. ELECTRICAL CHAR ACTERISTIC:

    ITEMSPECTEST EQUIPMENTTEST CONDITION
    L1-2=L3-47.0uH+10%WK5237 OR EQU100KHz/1.0V
    DCR1-2=DCR3-475(mΩ)MAX502BC
    Q Value)60 MinWK5237 OR EQU100KHz/1.0



    5.SPECIFICATION NO:

    PCW 465108 -7R0 K2
    ① ② ③ ④
    ①Product symbol:
    ②Dimmensions:
    ③Inductance : 2R2:2.2μH, R47:0.47μH,310:31uH,501:500uH,152:1.5mH
    ④Tolerance: J-±5% K-±10% M-±20% N-±30% P-MIN










    6.TEST DATA:

    ELECTRICAL CHARACTERISTIC
    L1-2 uHL3-4 uHDCR1-2(mΩ)DCR3-4(mΩ)Q
    7.0+/-10%7.0+/-10%75MAX75MAX60Min
    6.887.0236.234.986.3
    6.796.9836.134.785.9
    6.686.8435.634.584.9
    6.796.9036.033.988.4
    6.586.8137.034.285.1
    6.7446.9136.1834.4486.12
    0.30.081.41.03.5



    7.PACKAGING

    a.quantity
    b.packaing dimensions(mm)

    used PE packing
    LWH
    350MAX350MAX170MAX
    c: Storage
    Please be sure to the parts at 35℃or less,70%RH or less,and isolate the parts from sulphic and chloric atm osphere

    8.RELIABILITY TEST

    .1.STORAGE TEMPERATURE:


    -40℃~85℃

    .2.OPERATING TEMPERATURE RANGE :


    -40℃~+85℃(CONTAIN HEATING COIL)

    -40℃~+85℃

    3.EXTERNAL APPEARANCE :


    NO EXTERNAL DEFECTS CAN BE FOUND IN THE VISUAL INSPECTION.

    4. TERMINAL STRENGTH :

    FIXED INDUCTORS,ONE END OF THE ELECTRODE WITH 0.45KG PULLING FORCE,GUIDED THE NEEDLE DOES NOT FALL OFF.


    5.INSULATING RESISTANCE :


    THE INSULATION RESISTANCE SHOULD BE OVER 1000MΩ WHEN D.C.100V IS APPLIED TO THE WINDING –CORE. MEANWHILE NO STRUCTURE AND ELECTRIC DEFECTS SHOULD BE FOUND FOR 1 MINUTE.


    6. HUMIDITY TEST :


    INDUCTANCE DEVIATION IS WITHIN ±10.0% AND NO STRUCTURE AND ELECTRIC DEFECTS CAN BE FOUND AFTER 96±2hours TEST UNDER THE CONDITIONOF RELATIVE HUMIDITY OF 90~95% AND TEMPERATURE OF 40±5℃. AND 1 HOUR STORAGE UNDER ROOM AMBIENT CONDITIONS AFTER THE DEVICE IS WIPED WITH DRY CLOTH.


    7. VIBRATION TEST :


    INDUCTANCE DEVIATION IS WITHIN ±10.0% AFTER 1 HOUR SWEEPING VIBRATION IN EACH THREE DIRECTIONS. NAMELY, FREQUENCY IS10~55Hz ANDTHE AMPLITUDE OF 1MINUTE CYCLE IS 1.5mm .
































    9.Background


    Inductive Coupling: good coupling between two coils, a transmitter coil and a receiver coil. An alternating current in the transmitter coil generates a magnetic field which induces a voltage in the receiver coil. This voltage can be used to power a mobile device or charge a battery. It is ideal for wireless charging transmitter coil assembly and increase the charging efficiency.


    10.Features


    Wireless charging transmitter coil assembly (Tx - coil)
    Litz wire winding Shield by Ni-Zn ferrite material
    Compliance with Qi standard of WPC


    11.Applications


    Mobile Phones
    Battery or battery Chargers
    Cameras
    MP3 /PMP
    MID's
    Hand Held Devices
    Gaming devices
