    Phenolic Chassis Tube Fuse Holder R3-11B For 5x20mm Micro Glass Fuses

    Ask Lasest Price
    Brand Name : UCHI
    Model Number : R3-11B
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000,000 EA Monthly
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Phenolic Chassis Tube Fuse Holder R3-11B For 5x20mm Micro Glass Fuses


    Screw Type Phenolic Panel Mount Chassis Tube Fuse Holder R3-11B For 5x20mm Micro Glass Fuses 10A 250V


    Main Specifications


    The FEC series have quick connect terminals and area available with a finger grip or slotted cap.

    For appliances in unattended use
    Low profile fuse holder with insulation walls
    Panel Mount
    IP40 Rated
    Quick connect terminals


    Fuse Size--Ø5.2x20mm

    Maximum Rating--10A 250V AC

    Dielectric Strength--AC 1500V 1 Minute

    Insulation Resistance--DC 500V 100mΩ Min

    A-Bayonet Type B-Screw Type



    Applications


    - Household appliances
    - Medical equipment


    Size (mm)

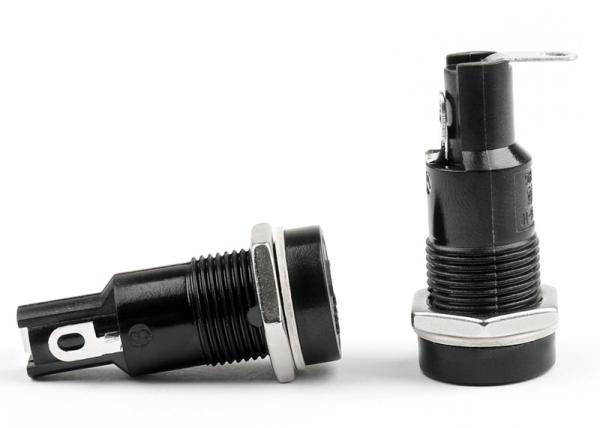

    Actual image



    Description


    Meets the new requirements of IEC 60335-1 for appliances in unattended
    use (clause 30.2.3). This includes the enhanced requirements of
    glow wire tests acc. to IEC 60695-2-12 and -13.
    - Compact design
    - Heading with fingergrip and slotted available
    - Degree of protection IP 67 available
    - White color available on request


    Derating Curves



    Panel Mounting


    CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.


    AttributeValue
    Current Rating10 A
    Voltage Rating250V ac/dc
    Cap StyleFinger Grip
    Compatible Fuse Length20mm
    Compatible Fuse Diameter5.2mm
    Compatible Fuse Dimensions5.2 (Dia.) x 20mm
    SeriesR3-11
    Protection CategoryPC2
    Body MaterialThermoset
    Contact MaterialTin Plated Copper Alloy
    Terminal TypeQuick Connect
    Standards MetCSA C22.2 No. 4248.1, CULus Recognised,, IEC 60127-6, UL 4248-1, VDE
