    Cylindrical Vertical 5x20mm PCB Fuse Holder Block 10A 250VAC With Terminal Pitch 10mm

    Ask Lasest Price
    Model Number : PTF-45
    Price : 0.22~0.4 USD/PC
    Payment Terms : Paypal, T/T
    Supply Ability : 2000,000 Pieces Per Month
    Delivery Time : 7-10 Days
    • Product Details
    • Company Profile

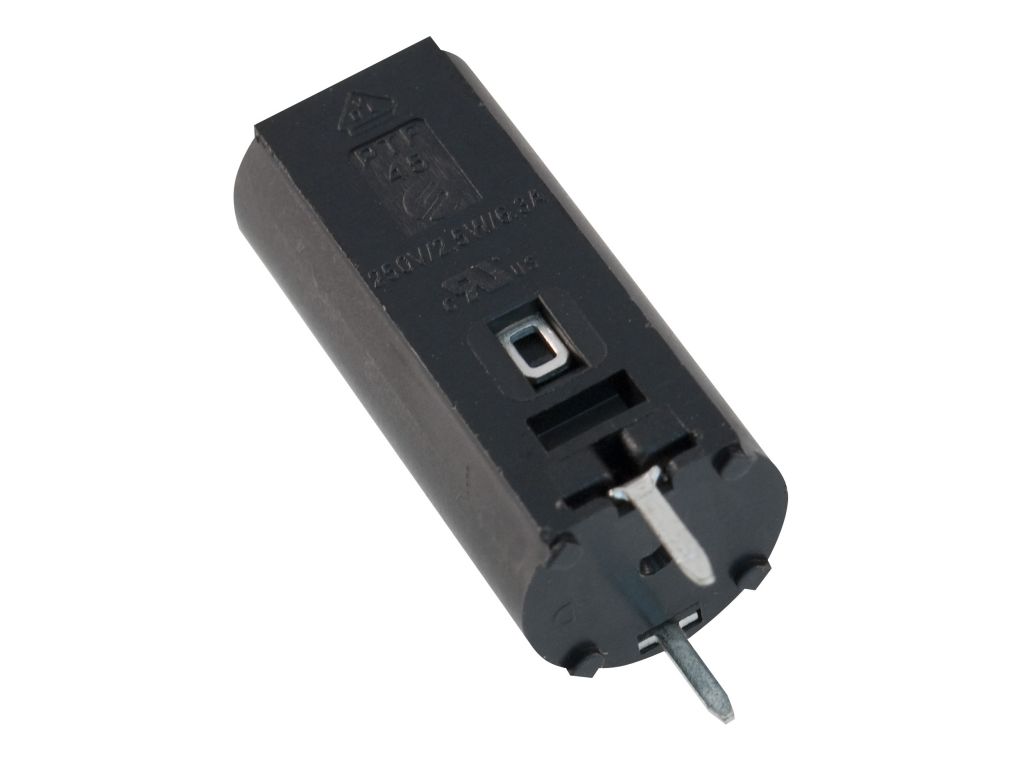

    Cylindrical Vertical 5x20mm PCB Fuse Holder Block 10A 250VAC With Terminal Pitch 10mm


    UL94V-0 Flammability Rating Cylindrical Vertical PTF-45 5x20mm PCB Fuse Holder Block 10A 250VAC With Terminal Pitch 10mm


    Overview


    Fuse holder to PCB for fuses 5 x 20mm.
    Opened by screwdriver or manually. Vertical.
    Rated voltage: 250V AC
    Rated current: 10A



    Specification


    Gross weight6.5 g
    Type of fuse accessoriesfuse holder
    Fuses applicationtube fuses
    MountingTHT
    Fuse size5x20mm
    Operating temperature-30...85°C
    Maximum current10A
    Body materialthermoplastic
    Flammability ratingUL94V-0
    Terminal pitch10mm
    Colourblack
    Rated voltage250V AC
    Contact resistance5mΩ
    Leads dimensionslen. 4mm
    Mounting hole diameterØ1.3mm
    Body dimensionsØ10 x 33.1mm

    Size (mm)



    TECHNICAL CHARACTERISTICS


    MATERIAL INSULATOR: PBTG15

    FLAMMABILITY RATING: UL94V0

    COLOR: BLACK

    CONTACT / PLATING: COPPER ALLOY / Ni+Sn FUSE

    CONTACT: PHOSPHOR BRONZE / Ni+Sn SPRING: INOX STEEL

    ENVIRONMENTAL OPERATING TEMPERATURE: -30°C UP TO +120°C

    COMPLIANCE: LEAD FREE AND ROHS


    ELECTRICAL

    UL VDE

    CURRENT RATING: 10A 10A

    WORKING VOLTAGE: 250VAC 250VAC

    WITHSTANDING VOLTAGE: 1,5KV 3KV

    RATED POWER ACCEPTANCE: --- 2,5W

    PROTECTION CLASS: II

    CONTACT RESISTANCE: 5/10 mΩ MAX


    Cautions and Warnings


    This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body, UCHI ELECTRONICS must be asked for a written approval. In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before by the user before usage.
