    Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL

    Ask Lasest Price
    Model Number : 938
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100,000,000,000 Pieces Per Month
    Delivery Time : 2 Weeks
    • Product Details
    • Company Profile

    Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL


    New Arrival Biggest 938 Series Plastic Shell Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL


    Application


    Over-current protection.Its main applications are for consumer electronics, LED drivers, power supplies, battery chargers and controllers for industrial use.


    GENERAL INFORMATION


    The 938 series provides protection for printed circuit boards used in a large variety of applications that need fuses with time-delay, low breaking capacity. The sub-miniature device is constructed of a plastic cap and base with a tin plated copper lead wire. It offers excellent mounting characteristics and is 100% tested for cold resistance.



    Detailed Features


    • Subminiature fuse with time delay, low breaking capacity.
    • Small, rectangular and leaded design minimizes board space and eliminates the need for additional mounting components.
    • Plastic cap / black thermoplastic fuse body.
    • 0.6mm lead wires made of tin plated copper.
    • Protection against harmful over-currents in primary and secondary applications.
    • Lead-free, Halogen-free, RoHS compliant.
    • Designed according to IEC 60127-4.


    AGENCY APPROVALS


    AgencyFile NumberVoltage/Current Rating
    CQCCQC18012203887250V AC: 4A, 5A
    ULPending300/250 AC: 0.1A~6.3A;

    Dimensions (units: mm)



    Operating Temperature: -55°C to +125°C
    Storage Conditions:
    +10℃ to +60℃
    Relative humidity: ≤ 75% yearly average without dew, maximum 30 days at 95%


    ELECTRICAL SPECIFICATIONS


    Time vs Current Characteristics Table-- IEC 60127
    (measured with constant current power supply)


    Rated Current125%200%1000%
    4A/5A>3600 sec<120 sec100msec~1sec

    Electrical Characteristics


    Rated CurrentRated VoltageBreaking CapacityNominal Cold
    Resistance
    (mΩ) ±30%
    Voltage Drop
    Max(mV)
    Power
    Dissipation
    Max(mW)
    Melting
    I²t(A²s)
    Max
    4A250V/300V200A@250V AC
    100A@300V AC
    18.03001500370
    5A250V/300V13.53001500750

    Notes:

    1. Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)
    2. The current values used for calculating I2T should be within the standard range of 10In


    Soldering parameters


    260±5℃.≤5 sec (Wave Soldering)
    350℃.≤3 sec (Hand Soldering)
    Soldering Peak:
    260±5℃ < 10 sec (IEC 60068-20)


    Packaging


    Tape in reel

    1000pcs per box , 1.1kg/box

    10000pcs per carton ,12kg.carton

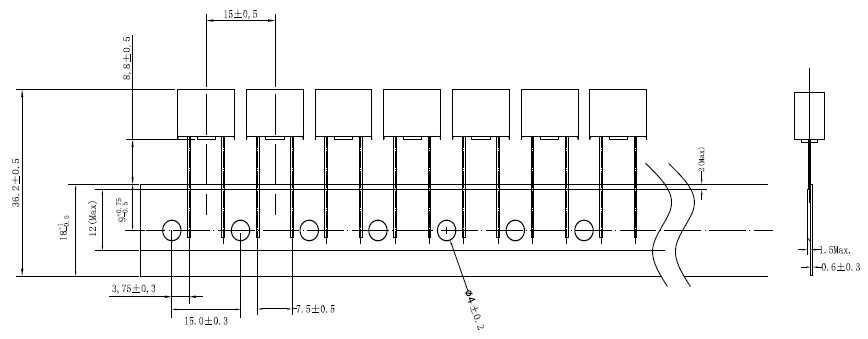

    Tape dimension



    Part Number


    Example: 9381500201
    938 1500 2 01
    1 2 3 4
    1 Product Series ………….. 938
    2 Ampere Rating ………..... 5A (see table 4.2 below)
    3 Rated Voltage …………... 1– 125V
    2– 250V
    3– 300V
    4 Supplementary Code …... Complement Code


    4.2. Ampere / Voltage Rating Table


    AMP CODECURRENT RATINGVOLTAGE RATING
    14004A250V / 300V AC
    15005A250V / 300V AC
