    Long Leaded PVC Cap Fast Acting Micro Miniature Fuse F 5A 250V PCB Mount Circuit Protection

    Ask Lasest Price
    Model Number : MFS1500A
    Certification : UL,VDE,KC,PSE,cUL,CQC
    Price : 0.016 ~ 0.02 USD/Pieces
    Payment Terms : T/T,Paypal
    Supply Ability : 10KKPCS Per Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    Long Leaded PVC Cap Fast Acting Micro Miniature Fuse F 5A 250V PCB Mount Circuit Protection


    PCB Mount Circuit Protection Compact Design Long Leaded PVC Cap Fast Acting Micro Miniature Fuse F 5A 250V


    What is a Micro Fuse?


    A micro fuse is a radial leaded subminiature fuse, offered in either a cylindrical or rectangular form factor. Micro fuses were originally designed for the U.S. Space Program. The micro fuse is made with either glass, plastic or metal bodies. They are designed to be electrically equivalent to miniature glass cartridge, fuses in a smaller package with higher tolerance to impact and vibration. Micro fuses can plug, in to a PC board mounted fuse holder. Micro fuse voltage, ratings typically range from 65 volts AC to 300 volts AC. Micro fuses with voltage ratings up to 450 volts DC are also available. Micro fuses are offered in fast acting, or time lag, versions. Micro fuses are typically built in accordance with UL 248-14, and CSA C22.2/No.248.14 or IEC 60127-3, standards. Some fuse micro series are also offered in MIL Spec, versions.



    Scope of application


    This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Battery Charges, Consumer Electronics, Power supplies, Industrial Controllers, etc.


    Standards


    In accordance with IEC60127-1, IEC60127-3 Standard sheet4, GB9364.1-1997, GB9364.3-1997.


    Agency Approvals


    AgencyAmpere RangeAgency File Number
    UR50mA ~ 6.3AE340427(JDYX2)
    C-UR50mA ~ 6.3AE340427(JDYX8)
    VDE50mA ~ 6.3A40039420
    CQC50mA ~ 6.3ACQC16012154495
    PSE50mA ~ 6.3APSE16021073
    KC50mA ~ 6.3ASU05052-16004/16005/16006

    Specification


    P/NRated currentRated voltageMax. Voltage Drop (mv)I2TMelting Integral(A2.S)
    MFS0200A200mA250V17000.04
    MFS0250A250mA250V14000.06
    MFS0315A315mA250V13000.1
    MFS0400A400mA250V12000.2
    MFS0500A500mA250V11000.35
    MFS0630A630mA250V6500.5
    MFS0800A800mA250V2401.3
    MFS1100A1A250V2001.6
    MFS1125A1.25A250V2002.4
    MFS1160A1.6A250V1904.6
    MFS1200A2A250V1707.9
    MFS1250A2.5A250V17012
    MFS1315A3.15A250V15022
    MFS1400A4A250V13029
    MFS1500A5A250V13078
    MFS1630A6.3A250V13097
    MFS1800A8A250V100290
    MFS2100A10A250V100430

    Dimension (mm)



    Materials


    NO.Part NameMaterial
    1CapBlack or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
    2BaseBlack or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
    3Fuse elementAlloy
    4Lead wireCopper, Tin-plated

    Melting Time


    % of Ampere Rating(In)Melting Time
    150%* In60 min Minimum
    210%* In30 min Max
    275%* In10 ms~3 s
    400%* In3 ms~300 ms
    1000%* In20 ms Max

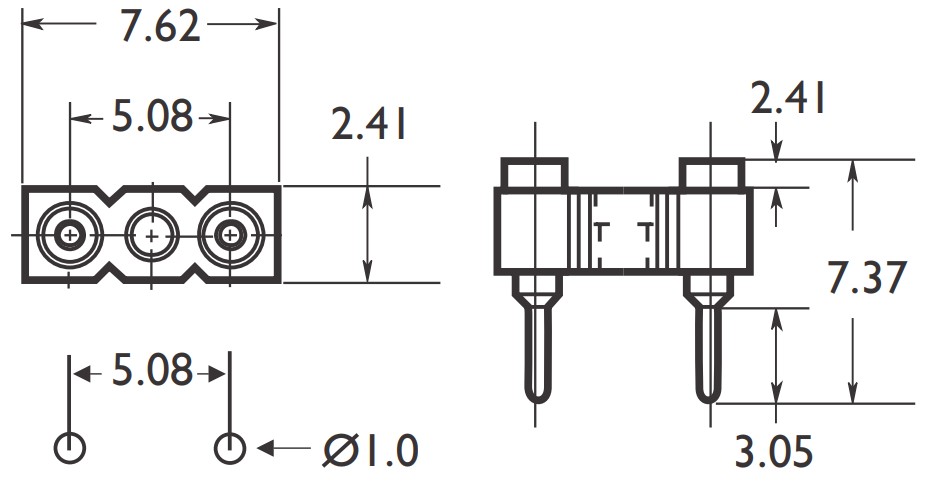

    Microfuse PCB Mount Holder
