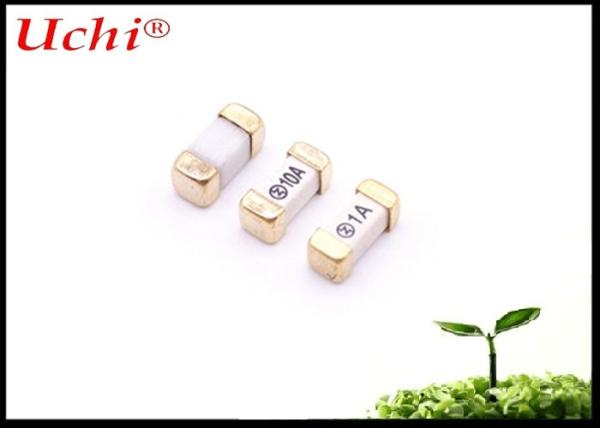

    Wire Core SMD Design 2410 Surface Mount Fuses 6125 Metric F1A250V For Overcurrent Protection

    Ask Lasest Price
    Model Number : SET1100
    Certification : UL CQC cUL ROHS REACH
    Price : 0.0265~0.35 USD/PC
    Payment Terms : T/T
    Supply Ability : 1000000000PCS/Month
    Delivery Time : 5 Workdays
    • Product Details
    • Company Profile

    Wire Core SMD Design 2410 Surface Mount Fuses 6125 Metric F1A250V For Overcurrent Protection


    Wire Core SMD Design Fast Acting SinglFuse 2410 Surface Mount Fuses (6125 metric) F1A250V For Overcurrent Protection


    Features


    * Single blow fuse for overcurrent protection
    * 6125 (EIA 2410) footprint
    * Fast acting precision
    * UL 248-14 listed
    * RoHS compliant* and halogen free**
    * Wire core SMD design
    * Surface mount packaging for automated assembly

    Approvals


    AgencyAmpere RangeAgency File Number
    UL50mA ~ 7AE340427(JDYX2)
    CUL50mA ~ 7AE340427(JDYX8)
    CQC500mA/1A/2ACQC18012206754
    ROHS6125 SeriesSZC18111684512
    REACH6125 SeriesSZC18030584513-3

    Size (mm)



    Cutoff Timeline


    % of Ampere Rating(In)Blowing Time
    100% * In4 hours Min
    200% * In120 sec Max

    Part numbering


    CatalogAmpereVoltageBreakingNominal ColdI2TMelting
    No.RatingRatingCapacityResistance(Ohms)Integral(A2.S)
    SSF0250250mA300VAC50A@300VAC 50A@250VAC 200A@125VAC0.860.145
    SSF0300300mA0.620.162
    SSF0315315mA0.550.189
    SSF0375375mA0.470.2
    SSF0400400mA0.380.238
    SSF0500500mA0.320.275
    SSF0600600mA0.2850.47
    SSF0630630mA0.2560.566
    SSF0700700mA0.2080.805
    SSF0750750mA0.1751.24
    SSF0800800mA0.1551.88
    SSF11001A0.1483.5
    SSF11251.25A0.1024.76
    SSF11501.5A0.0856.305
    SSF12002A0.0448.95
    SSF12502.5A0.04316.025
    SSF13003A0.03321.56
    SSF13153.15A0.02922.75
    SSF13503.5A0.02727.05
    SSF14004A0.02531.808
    SSF15005A0.01940.25
    SSF16006A0.01867.245
    SSF16306.3A0.01773.55
    SSF17007A0.01576.28

    Application


    $ LCD / LED TVs

    $ White goods

    $ PC servers

    $ LCD monitors

    $ DC/DC converters

    $ DC/AC inverters

    $ Notebooks / ultrabooks

    $ Telecom systems

    $ Chargers


    Reliability Test


    NO.ItemContentReference standards
    1Product MarkingBrand, Ampere RatingMarking standards
    2Operating Temperature-55°C to 125°CIEC60068-2-1/2
    3SolderabilityT=240°C±5°C , t=3sec±0.5sec, Coverage≥95%MIL-STD-202, Method 208
    4Resistance to Soldering Heat10 sec at 260°CMIL-STD-202, Method 210, Test condition B
    5Insulation Resistance (after Opening)10,000 ohms minimumMIL-STD-202, Method 302, Test Condition A
    6Thermal Shock5 cycles, -65°C / +125°C, 15 minutes at each extremeMIL-STD-202, Method 107, Test Condition B
    7Mechanical Shock100G’s peak for 6 milliseconds, 3cyclesMIL-STD-202, Method 213, Test I
    8Vibration0.03”amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrsMIL-STD-202, Method 201
    9Moisture Resistance10 cyclesMIL-STD-202, Method 106
    10Salt Spray5% salt solution, 48hrsMIL-STD-202, Method 101, Test Condition B
