SMD1140 476 Series Slow Blow Surface Mount Pico Fuse 1A 250VAC 400VDC For LED Lighting

    Buy cheap SMD1140 476 Series Slow Blow Surface Mount Pico Fuse 1A 250VAC 400VDC For LED Lighting from wholesalers

    Buy cheap SMD1140 476 Series Slow Blow Surface Mount Pico Fuse 1A 250VAC 400VDC For LED Lighting from wholesalers
    • Buy cheap SMD1140 476 Series Slow Blow Surface Mount Pico Fuse 1A 250VAC 400VDC For LED Lighting from wholesalers

    SMD1140 476 Series Slow Blow Surface Mount Pico Fuse 1A 250VAC 400VDC For LED Lighting

    Ask Lasest Price
    Model Number : 4761100201
    Certification : UL,ROHS,HF
    Price : Quote
    Payment Terms : T/T,Paypal
    Supply Ability : 100000000PCS/Month
    Delivery Time : 2 Weeks
    • Product Details
    • Company Profile

    SMD1140 476 Series Slow Blow Surface Mount Pico Fuse 1A 250VAC 400VDC For LED Lighting


    SMD1140 476 Series Slow Blow Surface Mount Pico Fuse 1A 250VAC 400VDC For LED Lighting


    Main Characteristics


    Brick fuse; Time-Lag(T)

    Standard UL-248-14

    Materials Body: Ceramic End Caps: Copper plated with silver

    Operating Temperature -55℃ to +125℃

    Stock Temperature +10℃ to +60℃

    Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%

    Vibration Resistance 24 cycles at 15 min. each (60068-6) 10-60Hz at 0.75mm amplitude 60-2000Hz at 10g acceleration

    Soldering Parameters 260℃.≤10 sec (Wave Soldering) 300℃.≤2 sec (Hand Soldering)

    Soldering Peak: 260℃. 10 sec. 280℃. 5 sec. (IEC 60068-20)

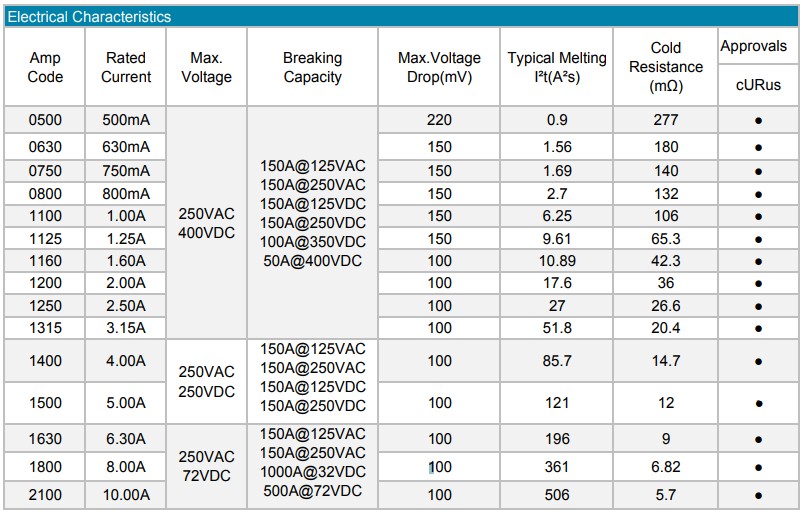

    Specification


    Note: (1) Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F) (2) The current values used for calculating I2T should be within the standard range of 10ms.


    Time vs Current Characteristics: UL-248-14


    Rated Current100%200%
    15~40A>4H<60s
    50~60A>4H<240s

    SMD Fuse Series


    NO.245
    SMQ 2410, Time-Lag(T)
    Rated Current:250mA ~ 7A
    Rated Voltage:
    AC: 125V
    DC: 125V
    NO.487
    SMQ 1240,Time-Lag(T)
    Rated Current:80A~100A
    Rated Voltage:
    AC: 125V
    DC: 72/ 63/ 32V
    NO.244/2410 size
    Time-Lag(T)
    Rated Current : 250mA~7A
    Rated Voltage: 125/250Vac; 125Vdc
    NO.241/2410 size
    Fast-Acting(F)
    Rated Current : 2A~15A
    Rated Voltage: 125Vac; 125Vdc
    No.127/1206 size
    SMD1206, Fast-Acting(F)
    Rated Current : 250mA~5A
    Rated Voltage: 125Vac; 72/ 125Vdc
    No.126/1206 size
    SMD1206, Time-Lag(T)
    Rated Current : 750mA~30A
    Rated Voltage: 72/45/32Vdc
    No.125/1206 size
    SMD1206, Fast-Acting(F)
    Rated Current : 250mA~30A
    Rated Voltage: 24/ 32/ 63/ 72Vdc
    NO.249
    SMQ 2410, Very Fast-Acting(VF)
    Rated Current:
    25A~30A
    Rated Voltage:
    DC:72Vdc
    NO.246/2410 size
    Time-Lag(T)
    Rated Current : 250mA~7A
    Rated Voltage : 350Vac
    NO.477
    SMQ1040,Time-Lag
    Rated Current:
    20A~60A
    Rated Voltage:
    AC: 125/250V
    DC: 32/60/72V
    No.065/0603 size
    Fast-Acting(F)
    Rated Current : 250mA~8A
    Rated Voltage: 63/32Vdc
    No.064/0603 size
    Fast-Acting(F)">Fast-Acting(F)
    Rated Current: 250mA~1.5A
    Rated Voltage: 63Vdc
    No.061/0603 size
    Fast-Acting(F)
    Rated Current : 250mA~5A
    Rated Voltage: 32Vdc
    No.123/1206 size
    Time-Lag(T)
    Rated Current : 1A~5A
    Rated Voltage: 12Vac; 32/63Vdc
    No.121/1206 size
    Fast-Acting(F)
    Rated Current : 250mA~20A
    Rated Voltage: 32Vac; 63Vdc
    NO.475
    Time-Lag(T)
    Rated Current : 20A~60A
    Rated Voltage: 125/250Vac
    No.066/0603 size
    Time-Lag(T)
    Rated Current : 1A~8A
    Rated Voltage: 32Vdc
    No.124/1206 size
    Fast-Acting(F)
    Rated Current : 250mA~1.5A
    Rated Voltage: 125Vac; 125Vdc
    No.063/0603 size
    Time-Lag(T)
    Rated Current : 1A~5A
    Rated Voltage: 32Vdc
    BETTERFUSE
