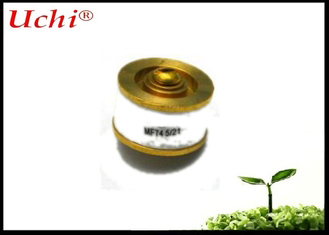

    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps

    Ask Lasest Price
    Brand Name : SHIHENG
    Model Number : MF74
    Certification : UL CQC TUV
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000000PCS Per Month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps


    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps


    Advantage of apply MF74 NTC THERMISTOR


    Best choice for limiting inrush current

    Leading Technology Perfect Function Originate in domestic

    Max steady state current : 120A


    Inrush current is the momentary surge of current created when power is turned on to motors,transformers,power suppliers and heating elements. The more power required by industrial equipment,the larger the inrush current. It can effectively quench the inrush current by means of in series with power NTC thermistor in return circuit of power supply. The thermistor’s resistance decreases dramatically following the inrush,allowing the steady state curent to flow with very little resistance.This effect provides inrush current protection, yet allows efficiency during normal operation.The power NTC Thermistor produced by Guangdong Uchi Technology Co.,Ltd. with large scale,especially MF73T,MF73,MF74,MF75 serial products with big size,which can be applied in such inrush protection with industrial level as industrial robots and automation.


    Characteristics


    Reliable configuration and convenient installation
    Strongest capability of surge current protection and energy absorption

    PATENT NO: 03277490.7


    Recommended Application


    Power conversion,switch powe,UPS Power

    All kinds of of super power lamps

    Electrical heater


    Outline Dimension



    Technical Specification


    P/NR25±20%(Ω)Max steady state current Imax(A)Approx R of Max current Rmax(Ω)Thermal time constant (mW/C)Thermal time constant (s)
    MF74-0.5/400.5400.00875118340
    MF74-1/321320.0137118340
    MF74-2/252250.024120340
    MF74-5/215210.0364123350
    MF74-10/1810180.0555125360
    MF74-20/1520150.0745125345

    Summary of NTC Thermistor and Temperature Sensor

      Thermistor is a ceramic semiconducting element made from exorbitant oxides material. It has the feature that the resistance changes according to the ambient temperature. Namely, their resistance declines with the rising of ambient temperature at a determinated measuring power. With this feature NTC thermistor and temperature sensor can be applied in the situation of temperature compensation, measurement and control and surge current protection.

      Main Techno-Parameter of NTC Thermistor

      1.Zero Power Resistance RT
      At rated temperature, it is the resistance measured by the measuring power which causes the resistance change that can be ignored relative to the whole measuring error.

      2.Rated Zero Power ResistanceR25
      The rated resistance of thermistor which is the zero power resistance measured at 25℃ and signed on the thermistor.

      3.B Value
      B value is the thermal exponent of negative temperature coefficient thermistor, which is defined as the ratio of the difference between the napierian logarithms of zero power resistance at two temperatures to the difference between the two temperatures’ reciproal.

    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps

      In the equation:
      RT1- the zero power resistance at T1
      RT2- the zero power resistance at T2

      Unless the particular indication, B value is figured out from the zero power resistances at 25℃(298.15K) and 50℃(323.15K) and B value is not a rigorous constant in the range of operating temperature.

      4.Temperature Coefficient of Zero Power ResistanceαT
    At rated temperature, it is the ratio of the zero power resistance change rate with temperature to the zero power resistance itself. Namely:

    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps

      where:
      αT-the temperature coefficient of zero power resistance at T
      RT-the zero power resistance at T
      T-temperature
      B- B value

      5. Dissipation Coefficientδ
      At rated ambient temperature, it is the ratio of consumption power change rate of thermistor to the change of the corresponding temperature, namely:

    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps

      In the range of operating temperature, δ has a little change with the ambient.

      6. Thermal Time Constantτ
      At zero power, it is measured as time in seconds which needed for thermistor temperature change of 63.2% difference between initial and final thermistor temperature when the temperature breaks.
      τis in direct ratio to thermal capacity C of thermistor and in inverse ratio to the dissipation coefficient, namely:

    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps

      7. Max. Steady State Current
      The maximum allowable continuous current passing through thermistor at 25℃.

      8. Resistance-temperature Characteristic
    The reliant relationship between the zero power resistance of thermistor and its temperature.

      R-T curve NTC thermistor

    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps

      9. Static V-I characteristic refers to the relationship between voltage and current when NTC thermistor establishes the thermal balance state, because the variable range of the relationship between terminal voltage and current of thermistor is very wide, its voltage and current curve is often represent by double logarithms coordinates.

    MF74 10/18 Current Limiting Power NTC Thermistor 10Ohm 18A 25mm Diameter For Super Power Lamps
