    Ceramic Insulator NTC Thermistor MF75-0.2/70 70A 0.2Ohm B2600 11500uF With Edge

    Ask Lasest Price
    Brand Name : SHIHENG
    Model Number : MF75
    Certification : UL CQC TUV
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000000PCS Per Month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Ceramic Insulator NTC Thermistor MF75-0.2/70 70A 0.2Ohm B2600 11500uF With Edge


    Ceramic Insulator NTC Thermistor MF75-0.2/70 70A 0.2Ohm B2600 11500uF With Edge


    Advantage of apply MF74 NTC THERMISTOR


    Best choice for limiting inrush current

    Leading Technology Perfect Function Originate in domestic

    Max steady state current : 120A


    Inrush current is the momentary surge of current created when power is turned on to motors,transformers,power suppliers and heating elements. The more power required by industrial equipment,the larger the inrush current. It can effectively quench the inrush current by means of in series with power NTC thermistor in return circuit of power supply. The thermistor’s resistance decreases dramatically following the inrush,allowing the steady state curent to flow with very little resistance.This effect provides inrush current protection, yet allows efficiency during normal operation.The power NTC Thermistor produced by Guangdong Uchi Technology Co.,Ltd. with large scale,especially MF73T,MF73,MF74,MF75 serial products with big size,which can be applied in such inrush protection with industrial level as industrial robots and automation.


    Characteristics


    Reliable configuration and convenient installation
    Strongest capability of surge current protection and energy absorption

    PATENT NO: ZL201620516869.6


    Recommended Application


    Nuclear magnetic resonance equipment,super power audio power amplifier,high power circle transformer

    The solar panel arrays with high capacity power inverter

    The industrial robot drived by high voltage power supply

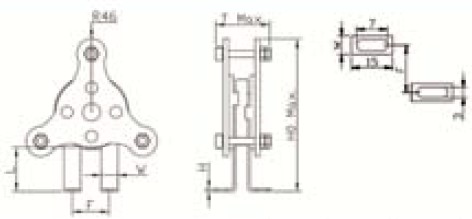

    Outline Dimension


    Body sizeΦ40Φ45Φ50
    (Dmax)/Diameter989292
    (Tmax)/Thickness464646
    (F±1.5)/Pitch303030
    (L±2)/Lead length404040
    Lead Height(Ho max)110110110
    Lead width(W±0.2)12.012.012.0
    Lead thickness(H±0.1)1.21.21.2

    Body sizeΦ40Φ45Φ50
    (Dmax)/Diameter929292
    (Tmax)/Thickness464646
    (F±1.5)/Pitch303030
    L±2 Lead length404040
    Lead Height(Ho max)110110110
    (W±0.2)/Lead width121212
    Lead thickness(H±0.1)1.21.21.2
    Width of lower lead (W1±0.2)888

    Technical Specification


    Body diameter Φ40mm


    P/NR25±20%(Ω)Thermal sensitive index B±10%(K)Max steady state current Imax(A)Approx R of Max current Rmax(Ω)Max power dissipation Pmax(W)Thermal time constant (mW/C)Thermal time constant (s)Max impulse capacitance (uF)240VAC
    MF75-0.2/550.22600550.00730≥55≤3508000
    MF75-1/4512600450.016800
    MF75-2/3522600350.0146800
    MF75-5/2753000270.0284700
    MF75-8/2283200220.0343300
    MF75-10/21103200210.0383300

    Body diameter Φ45mm


    P/NR25±20%(Ω)Thermal sensitive index B±10%(K)Max steady state current Imax(A)Approx R of Max current Rmax(Ω)Max power dissipation Pmax(W)Thermal time constant (mW/C)Thermal time constant (s)Max impulse capacitance (uF)240VAC
    MF75-0.2/700.22600700.00645≥70≤48011500
    MF75-0.5/550.52600550.0078000
    MF75-1/5212600520.0098000
    MF75-2/4522600450.0128000
    MF75-5/3553000350.0256800
    MF75-10/28103200280.0324700

    Body diameter Φ50mm


    P/NR25±20%(Ω)Thermal sensitive index B±10%(K)Max steady state current Imax(A)Approx R of Max current Rmax(Ω)Max power dissipation Pmax(W)thermal time constant (mW/C)Thermal time constant (s)Max impulse capacitance (uF)240VAC
    MF75-0.2/900.22600900.00455≥90≤65015000
    MF75-1/6012600600.00811500
    MF75-2/5022600500.01111500
    MF75-5/4053000400.0228000
    MF75-8/3283200320.0286800
    MF75-10/30103200300.036800

    A glance at workshop and R&D center


    16 years’ experience R&D center and modern factories cover an areas of 120 mu .


    Uchi Technology, National Hi-Tech Enterprise and drafting member of “National Thirteen Five Plan”,specilized in manufacturing sensitive elements as NTC/PTC thermistor,NTC temperature sensor and metal oxide varistor. With unique process and advanced technology , product produced with high precision,high reliability,high stability etc outstanding advantages, becoming leading level in the industry. Based on current standard power type MF72 NTC thermistors and “The engineer and research technology center of NTC thermistor ceramic material ” ,applied with new materials/technology/process/equipment,as well as unremitting efforts, innovated MF73T,MT73,MF74,MF75 etc. new power type NTC thermistor and mass production to be realized,key technology has been got big breakthrough and performances has been increased a lot.We have our own proprietary intellectual property right and dozens of patents, it can provide inrush protection in industrial level application and it is originate in domestic !
