    Bending Beam CZL616C Micro Load Cells 300-750g For Electronic Weighing Systems

    Ask Lasest Price
    Brand Name : UCHI
    Model Number : CZL616C
    Certification : SGS,ISO
    Price : Neotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500000pcs per quarter
    Delivery Time : 10 workdays
    • Product Details
    • Company Profile

    Bending Beam CZL616C Micro Load Cells 300-750g For Electronic Weighing Systems


    Bending Beam CZL616C Micro Load Cells 300-750g For Electronic Weighing Systems


    Description


    Load Cells manufactured in CN by UCHI Advanced Sensor Technology (UCHI), a leading manufacturer producing a huge selection of Load Cells, utilizing one of the most advanced technologies in the Sensor Industry: Metal foil strain gauge technology.A Load Cell is defined as a transducer that converts an input mechanical force into an electrical output signal. Load Cells are also commonly known as Load Transducers or Load Sensors.


    Product Highlights


    • Ideal for OEM Applications
    • Compression
    • Can be utilized to measure force, pressure, and displacement for OEM Application
    • Strain Gauge Based
    • Exposed elements
    • Light Weight

    Application


    Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.


    Performances


    Rated load (g)
    300-750
    Comprehensive error (%FS)
    0.05
    Rated output (mV/V)
    0.7±0.15
    Dimensions (mm)
    45×9.3×6
    Cable (mm)
    Φ0.6×110

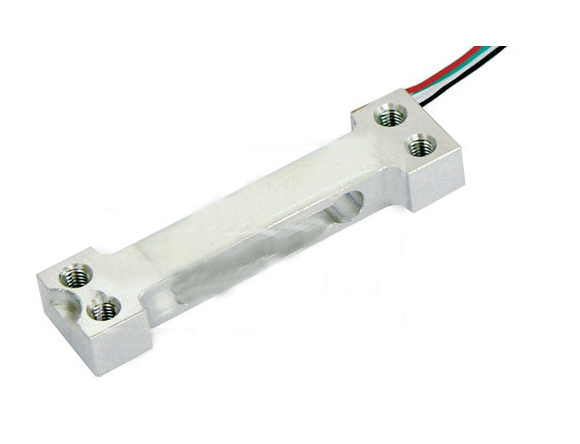

    Product image



    Quality Bending Beam CZL616C Micro Load Cells 300-750g For Electronic Weighing Systems for sale
