    10mm Metal Oxide Varistor Utilize 3 Leads Overcurrent Overvoltage Protection Devices

    Ask Lasest Price
    Brand Name : UCHI
    Model Number : VA150-10D431K
    Certification : ROHS,H/F.
    Price : 1 USD/PC
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 1000000PCS/Month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    10mm Metal Oxide Varistor Utilize 3 Leads Overcurrent Overvoltage Protection Devices


    10mm Metal Oxide Varistor Utilize 3 Leads Overcurrent Overvoltage Protection Devices


    Description


    Main part number :


    VA150-10D431K(TE PN:LVM2P-015R10431) : I hold = 150mA & 430V MOV
    VA350-14D431K(TE PN:LVM2P-035R14431) : I hold = 350mA & 430V MOV
    VA750-14D431K(TE PN:LVM2P-075R14431) : I hold = 750mA & 430V MOV


    Benefits


    Single device helps reduce component count and footprint
    Helps reduce warranty returns
    Helps equipment comply with surge tests per:TIA-968-A, IEC 60950, ITU-T K.20/K.21
    Helps simplify UL 60950 testing
    Helps equipment comply with UL 60950


    Features


    Single overcurrent, overvoltage and ESD protection device helps reduce component count and footprint
    Resettable overcurrent protection
    Reduces warranty returns
    Helps equipment comply with surge tests per: TIA-968-A, IEC 60950, ITU-T K.20/K.21
    Simplifies UL 60950 testing
    Allows equipment to comply with UL 60950
    RoHS compliant
    Halogen free (refers to: Br≤900ppm, CI≤900ppm, Br+CI≤1500ppm)


    Application


    Cordless telephones
    VoIP gateways
    Fax machines
    Data modems
    Set-top boxes
    Security systems
    MDF modules
    Analog and ISDN linecards


    Ratings @ 25degreeC


    1-2 PTC Over-current Protection Parameters
    Max. Peak current15AMaximum Continuous Operating Voltage (Vmco)250 VRMS
    Max. Overload current3.0 ARMSMaximum impulse voltage60 VDC
    25±2oC Hold current350mA25℃±2oC Trip current1.5A
    Initial zero power resistance6.5~16ΩMax. Resistance after tripped 1 hrs2 Ω
    25±2oC,220VAC,3A Actuation time≤24S
    2-3 MOV Over-voltage Proection Parameters
    Varistor Voltage @1mA430VDCVoltage @ ACRMS / DC250V / 320V
    Max. Clamping Voltage @25A710VToleranceK=10%
    Rated Power W0.25WCapacitance(Ref.)@1KHZ≥230PF
    Resistance@100VDC≥2MΩ

    Dimension


    Lead Material:Sn Plated wire,Φ0.80mm


    Electrical Schematic:


    Welding requirements


    Wave solderingContinuous production, recommended maximum heating rate is not more than 4 degrees C / s, maximum welding temperature is not more than 260 degrees Celsius, welding time 3-5 seconds, cold pressing
    Manual weldingMaximum power of the electric iron should be less than 30W, welding temperature does not exceed 280 degrees. Time less than 3 seconds, welding position should be more than 6 mm apart from the body of the product.
    Dip solderingUsing the welding slot method, the lead end submerged to the 6mm distance component, welding temperature 260 ± 5 degrees, welding time to be controlled within 5 ±1 second

    Insulating Material: Cured, Flame Retardant Epoxy Polymer (meeting UL94 V-0 requirements)

    Storage & operating temperature range : -40℃ ~ +85℃

    Package:Bulk,200pcs/bag

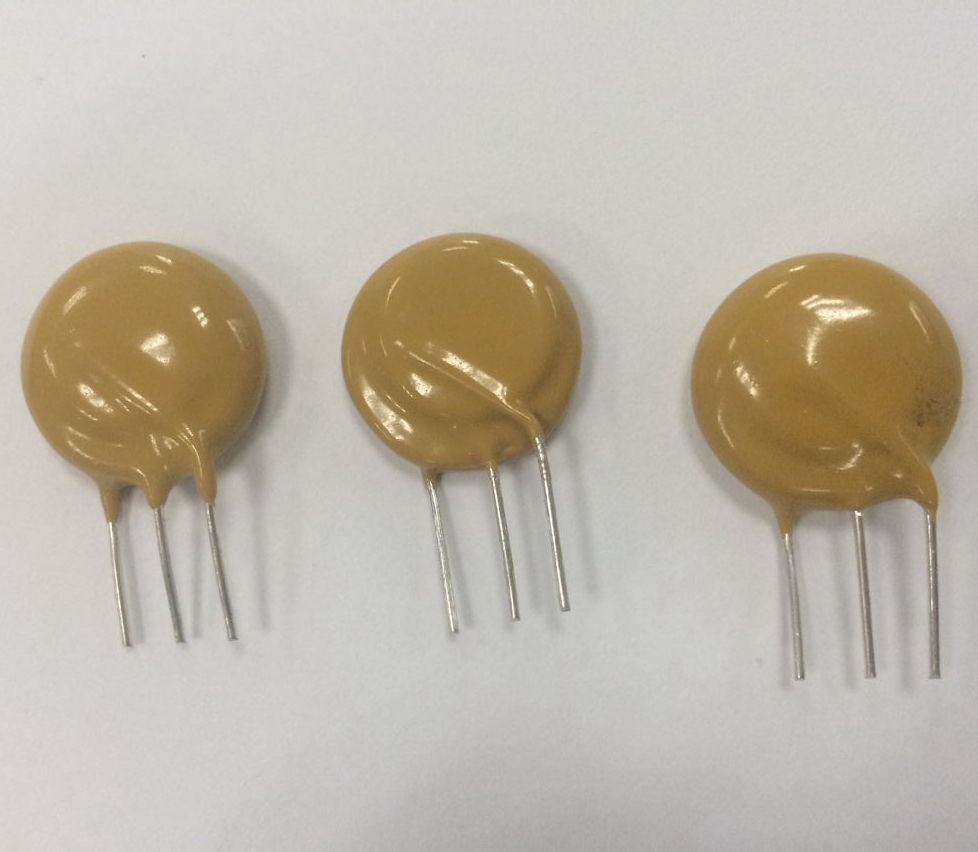

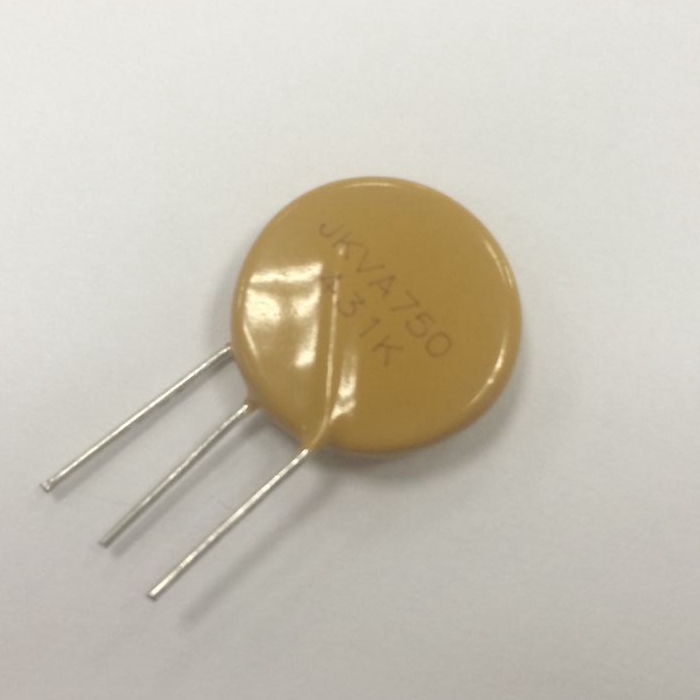

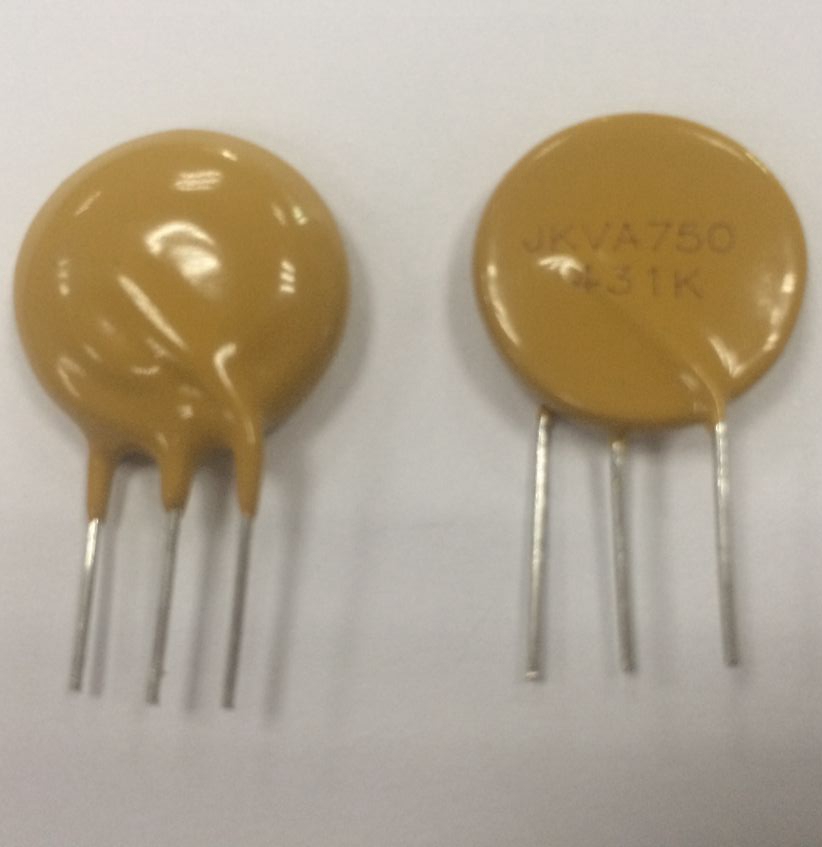

    Product Photos



    Quality 10mm Metal Oxide Varistor Utilize 3 Leads Overcurrent Overvoltage Protection Devices for sale
