    Body Scales 50KG Micro Load Cells Bending Beam Single Point CZL928E

    Ask Lasest Price
    Brand Name : UCHI
    Model Number : CZL928E
    Certification : SGS.ISO.
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500000pcs
    Delivery Time : 14 workdays
    • Product Details
    • Company Profile

    Body Scales 50KG Micro Load Cells Bending Beam Single Point CZL928E


    Body Scales 50KG Micro Load Cells Bending Beam Single Point CZL928E


    Quick details


    Introduction

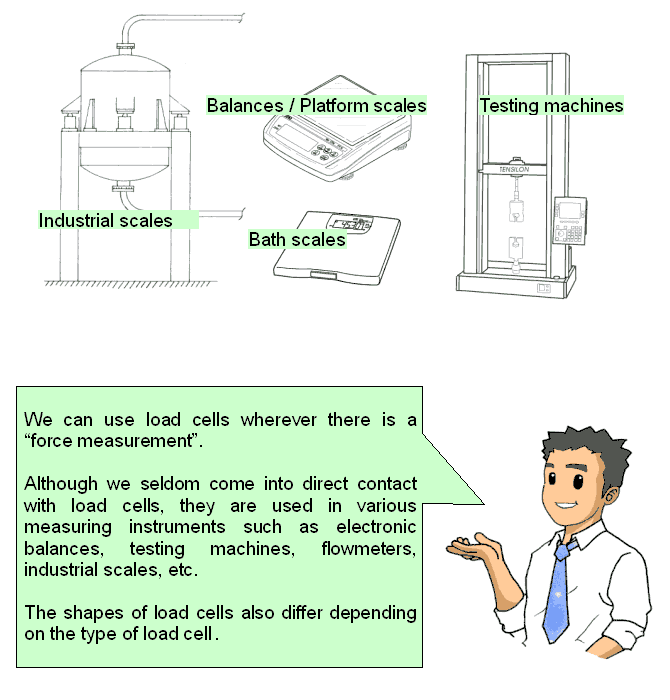

    A load cell is a force sensing module - a carefully designed metal structure, with small elements called strain gauges mounted in precise locations on the structure. Load cells are designed to measure a specific force, and ignore other forces being applied. The electrical signal output by the load cell is very small and requires specialized amplification. Fortunately, the 1046 PhidgetBridge will perform all the amplification and measurement of the electrical output.
    Load cells are designed to measure force in one direction. They will often measure force in other directions, but the sensor sensitivity will be different, since parts of the load cell operating under compression are now in tension, and vice versa.
    This Single Point Load Cell is used in small jewelry scales and kitchen scales. It’s mounted by bolting down the end of the load cell where the wires are attached, and applying force on the other end in the direction of the arrow. Where the force is applied is not critical, as this load cell measures a shearing effect on the beam, not the bending of the beam. If you mount a small platform on the load cell, as would be done in a small scale, this load cell provides accurate readings regardless of the position of the load on the platform.


    Product specifications


    1. Rated Load50 (Kg)
    2. Rated Output1.0±0.15 mV/V
    3. Zero Balance+/-0.3mV/V
    4. Input Resistance1000±10Ω
    5. Output Resistance1000±10Ω
    6. Excitation Voltage5-10VDC
    7. Nonlinearity0.4%F.S
    8. Hysteresis0.3%F.S
    9. Repeatability0.2%F.S
    10. Creep(30min)0.1%F.S
    11. Operating Temperature-10 To +40℃
    12. Temperature Effect on Zero0.2%F.S/10℃
    13. Temperature Effect on Span0.2%F.S/10℃
    14. Insulation Resistance2000MΩ(50VDC)
    15. Safe Overload150%F.S
    16 .Ultimate Overload150%FS
    17. Cable

    420mm


    NumberType="1" TCSC="0" w:st="on">5mm 4-wire shielding cable)


    Installation


    Single Point Load Cells

    A single-point load cell. Applying force to one end creates stress in the bar, causing the strain gauge encased in the white plastic to flex.This Single Point Load Cell is used in small jewelry scales and kitchen scales. It’s mounted by bolting down the end of the load cell where the wires are attached, and applying force on the other end in the direction of the arrow. Where the force is applied is not critical, as this load cell measures a shearing effect on the beam, not the bending of the beam. If you mount a small platform on the load cell, as would be done in a small scale, this load cell provides accurate readings regardless of the position of the load on the platform.
    Button Load Cells

    A button load cell. Applying force to the bump in the middle of the cell causes a change in the output.This Button Load Cell is used in applications that require a thin form factor. The bottom of the load cell is bolted, and force applied to the button on the top. By loading only the button, which is slightly rounded, the load cell is less sensitive to errors resulting from the load not pushing down exactly straight on the load cell.
