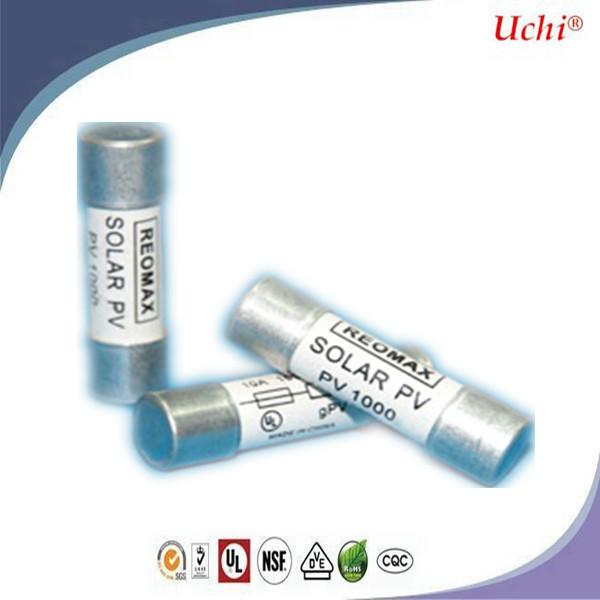

    Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection

    Ask Lasest Price
    Brand Name : REOMAX
    Model Number : PV1000
    Certification : UL,CUL
    Price : USD
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100,000PCS
    Delivery Time : 10 Workdays
    • Product Details
    • Company Profile

    Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection


    Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection


    Scope of Application


    The PV1000 Solar Protection Fuse links series has been specifically designed for the protection of photovoltaic (PV) systems, this family of Midget style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverse overcurrent conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the PV1000 series is to safely interrupt faulted circuits up to this demanding voltage level.
    Weoffers more than 11 ampere ratings to match specific requirements in a variety of applications.


    Features and Benefits


    Meets UL photovoltaic standards, based on UL 2579, 1000 VDC maximum;
    Rated current: 1-15 A ratings available;
    Breaking capacity: 10,000A;
    Multiple installation options are available: Fuse Clips, Fuse Blocks and Multi-Pole Global Modular Fuse Holders Assembly Kit.


    Catalogue No.


    Catalog

    No.

    Rated

    Current

    Rated

    Voltage

    Breaking

    Capacity

    I2t (A2S)

    Watts Loss(W)

    Pre-ArcingTotal at 1000V0.8In1.0In
    PV1000.1A1A1000V (DC)10kA, Time Constant <1ms0.150.40.81.5
    PV1000.2A2A1.33.40.71.1
    PV1000.3A3A4120.81.3
    PV1000.3.5A3.5A6.5200.91.4
    PV1000.4A4A10281.11.4
    PV1000.5A5A19501.11.4
    PV1000.6A6A32931.21.8
    PV1000.8A8A3.2331.22.2
    PV1000.10A10A30701.32.3
    PV1000.12A12A502001.52.8
    PV1000.15A15A602301.83

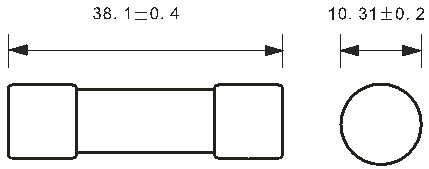

    Dimensions and Structure Unit:mm


    Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection


    Packaging


    Packing Quantity

    Bulk10 pcs in per poly bag;

    1 poly bags in per inner box;

    18 inner boxes in per outer carton(6 * 3 levels)

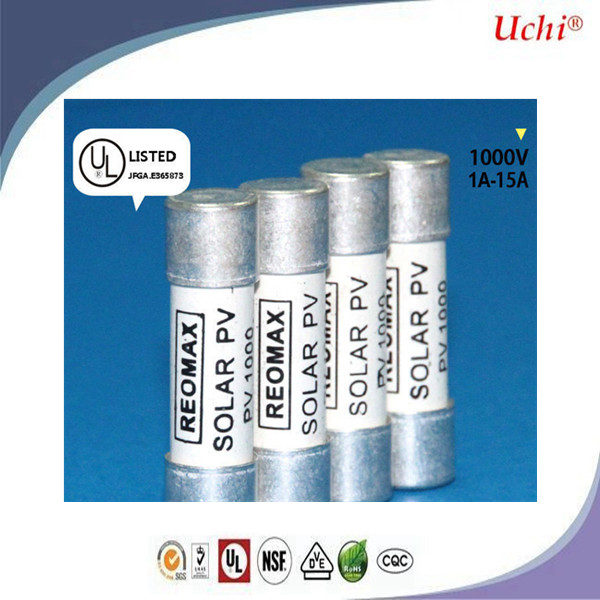

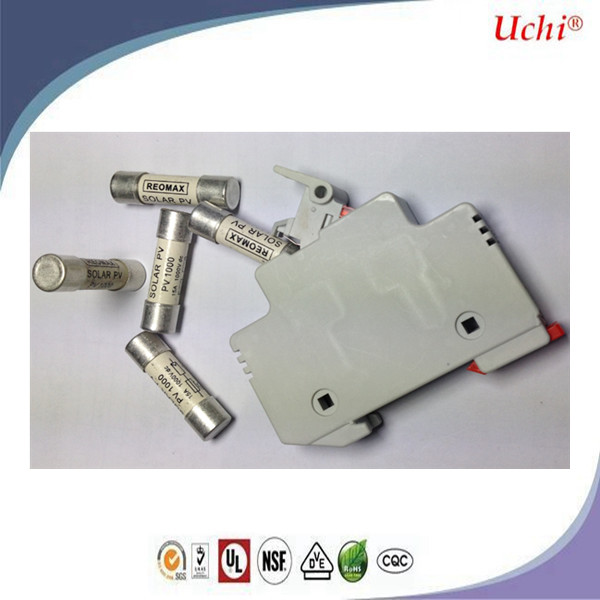

    Photos


    Photovoltaic 10X38mm PV1000 Ceramic Fuse For Solar ProtectionPhotovoltaic 10X38mm PV1000 Ceramic Fuse For Solar ProtectionPhotovoltaic 10X38mm PV1000 Ceramic Fuse For Solar ProtectionPhotovoltaic 10X38mm PV1000 Ceramic Fuse For Solar ProtectionPhotovoltaic 10X38mm PV1000 Ceramic Fuse For Solar Protection
