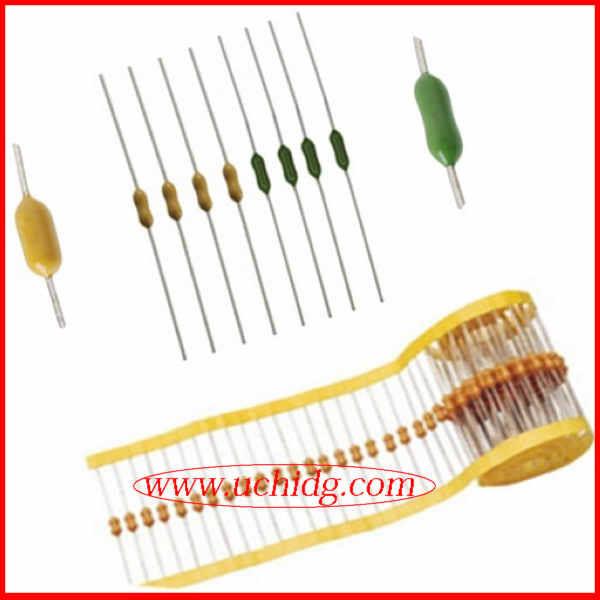

    Subminiature Axial Leaded Glass Fuses Pico Slow Blow For Adapter

    Subminiature Axial Leaded Glass Fuses Pico Slow Blow For Adapter


    1.Pico Slow Blow Military Spec Subminiature Axial Leaded Fuse Scope of Application


    This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Lighting, Power supply and Adapter applications, etc.


    2.Pico Slow Blow Military Spec Subminiature Axial Leaded Fuse Standards and Agency Approvals


    2.1 Standards:In accordance with UL 248 -1 / -14.


    2.2 Certification:


    Voltage RatingAgencyAmpere RangeAgency File Number
    125V/250VUL100mA ~ 6.3AE340427(JDYX2)
    C-UL100mA ~ 6.3AE340427(JDYX8)

    2.3 Pico Slow Blow Military Spec Subminiature Axial Leaded Fuse

    Catalogue No.,A=250V / B=125V,● Approved / ○ Pending


    Catalog

    No.


    Ampere

    Rating

    Voltage

    Rating

    Breaking

    Capacity

    I2TMelting

    Integral(A2.S)

    Agency Approvals
    Subminiature Axial Leaded Glass Fuses Pico Slow Blow For AdapterSubminiature Axial Leaded Glass Fuses Pico Slow Blow For Adapter

    Subminiature Axial Leaded Glass Fuses Pico Slow Blow For Adapter


    STB0100A/B100mA250V/125V50A@125V/250VAC0.01
    STB0125A/B125mA250V/125V50A@125V/250VAC0.02
    STB0160A/B160mA250V/125V50A@125V/250VAC0.04
    STB0200A/B200mA250V/125V50A@125V/250VAC0.06
    STB0250A/B250mA250V/125V50A@125V/250VAC0.09
    STB0300A/B300mA250V/125V50A@125V/250VAC0.12
    STB0315A/B315mA250V/125V50A@125V/250VAC0.15
    STB0350A/B350mA250V/125V50A@125V/250VAC0.19
    STB0400A/B400mA250V/125V50A@125V/250VAC0.31
    STB0500A/B500mA250V/125V50A@125V/250VAC0.46
    STB0630A/B630mA250V/125V50A@125V/250VAC0.78
    STB0750A/B750mA250V/125V50A@125V/250VAC0.93
    STB0800A/B800mA250V/125V50A@125V/250VAC1.1
    STB1100A/B1A250V/125V50A@125V/250VAC1.3
    STB1125A/B1.25A250V/125V50A@125V/250VAC2.6
    STB1150A/B1.5A250V/125V50A@125V/250VAC3.1
    STB1160A/B1.6A250V/125V50A@125V/250VAC3.9
    STB1200A/B2A250V/125V50A@125V/250VAC7.2
    STB1250A/B2.5A250V/125V50A@125V/250VAC12
    STB1300A/B3A250V/125V50A@125V/250VAC15
    STB1315A/B3.15A250V/125V50A@125V/250VAC19
    STB1350A/B3.5A250V/125V50A@125V/250VAC24
    STB1400A/B4A250V/125V50A@125V/250VAC29
    STB1500A/B5A250V/125V50A@125V/250VAC59
    STB1630A/B6.3A250V/125V50A@125V/250VAC90

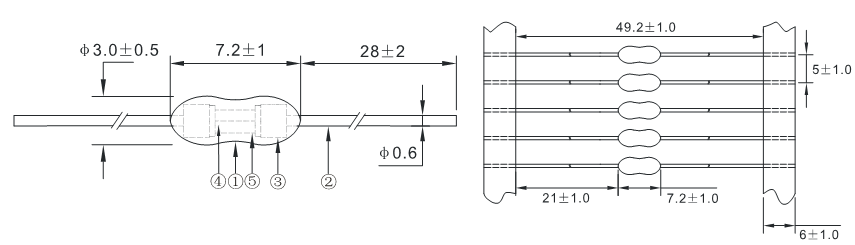

    3. Pico Slow Blow Military Spec Subminiature Axial Leaded Fuse Dimensions and Structure

    Unit: mm


    4. Pico Slow Blow Military Spec Subminiature Axial Leaded Fuse Operating Characteristics


    % of Ampere Rating(In)Blowing Time
    100% * In4 hours Min
    200% * In60 sec Max

    5.Pico Slow Blow Military Spec Subminiature Axial Leaded Fuse Material Details


    NO.Part NameMaterial
    1Body EncapsulatedEpoxy Coated
    2Lead wireTin Plated Copper
    3CapNickel Plated Brass
    Fuse elementAlloy wire
    Body

    Non-Transparent Ceramic Tube
