    Home Appliances Ntc Thermistor Temperature Sensor For Computers And Printers

    Ask Lasest Price
    Brand Name : UCHI
    Model Number : IT
    Certification : ROHS,ISO
    Price : Negetiable
    Payment Terms : T/T Paypal
    Supply Ability : 50000000PCS per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Home Appliances Ntc Thermistor Temperature Sensor For Computers And Printers

    Ntc Thermistor Temperature Sensor For Computers And Printers Home Appliances

    Scope

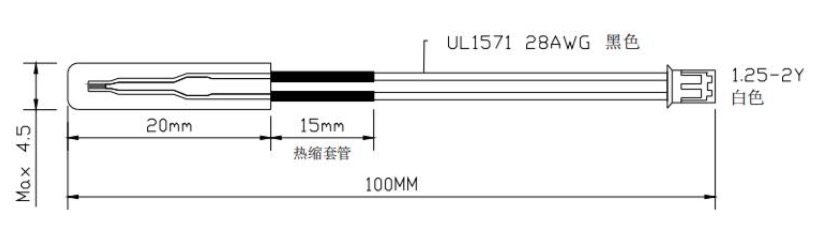

    This specification defines ratings, dimension, insulation, climatic test and mechanical characteristics for MJT type thermistor


    Climatic test

    Dry Heat


    After the test samples are exposed in air at 90±1°C for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.

    Damp heat


    After the test samples are exposed in the humidity of 95% at 40±2°C for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.


    Cold


    After the test samples are exposed in air at –30±1°C for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.

    Loading
    After DC 1mA current is applied to the test samples in the temperature of 40±2°C and the humidity of 95% for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.



    Mechanical characteristics

    1. Resistance to soldering heat
    The terminals shall be dipped in to a soldering bath having a temperature of 260±5°C to a point 2.0 mm from the body and then be held there for 5 ±1s, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.


    2. Solderability
    After dipping the terminal to a depth in a soldering bath of 235±5°C for 2

    ±0.5s .Approximately 90% of terminals should be covered with solder

    uniformly.


    3. Free fall

    After three times fall to a maple board from 0.75 m high, there shall be no visible damage and the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.


    4. Robustness of terminations
    After 1N loading weight for 10 ± 1s was applied to the wire terminations, there shall be no visible damage and the change ratio of the rated zero-power resistance shall be within ±1% of the initial
    value.
