34S Square 220v High Power MOV Varistor High Energy Absorption Capability

34S Square 220V high power metal oxide varistor Quick Detail:

• Wide voltage range selection - from 14 VRMS to 680 VRMS.This allows easy selection of the correct component for the specific application.

• High energy absorption capability with respect to size of component.

• Response time of less than 20 ns, clamping the transient the instant it occurs.

• Low stand-by power - virtually no current is used in the stand-by condition.

• Low capacitance values, making the varistors suitable for the protection of digital switching circuitry.

• High body insulation - an ochre coating provides protection up to 2500 V, preventing short circuits to

adjacent components or tracks.

• Available on tape with accurately defined dimensional tolerances, making the varistors ideal for automatic

insertion.

• Approved to UL 1449 edition 3 (file number: E332800) and manufactured using UL approved flame retardant materials.

• Completely non flammable, in accordance with IEC, even under severe loading conditions.

• Non porous lacquer making the varistors safe for use in humid or toxic environments. The lacquer is also resistant to cleaning solvents in accordance with IEC 60068-2-45.

34S Square 220V high power metal oxide varistor Description:

Varistors provide reliable and economical protection against high voltage transients and surges which may be produced,for example, by lightning, switching or electrical noise on AC or DC power lines. They have the advantage over transient suppressor diodes in as much as they can absorb much higher transient energies and can suppress positive and negative transients.When a transient occurs, the varistor resistance changes from a very high stand-by value to a very low conducting value. The transient is thus absorbed and clamped to a safe level, protecting sensitive circuit components.Varistors are manufactured from a non-homogeneous material, giving a rectifying action at the contact points of two particles. Many series and parallel connections determine the voltage rating and the current capability of the varistor

34S Square 220V high power metal oxide varistor Applications:

Varistors may be used in many applications, including:

• Computers

• Timers

• Amplifiers

• Oscilloscopes

• Medical analysis equipment

• Street lighting

• Tuners

• Televisions

• Controllers

• Industrial power plants

• Telecommunications

• Automotive

• Gas and petrol appliances

• Electronic home appliances

• Relays

• Broadcasting

• Traffic facilities

• Electromagnetic valves

• Railway distribution/vehicles

• Agriculture

• Power supplies

• Line ground (earth protection)

• Microwave ovens

• Toys, etc.

34S Square 220V high power metal oxide varistor

metal oxide varistor 34S specification

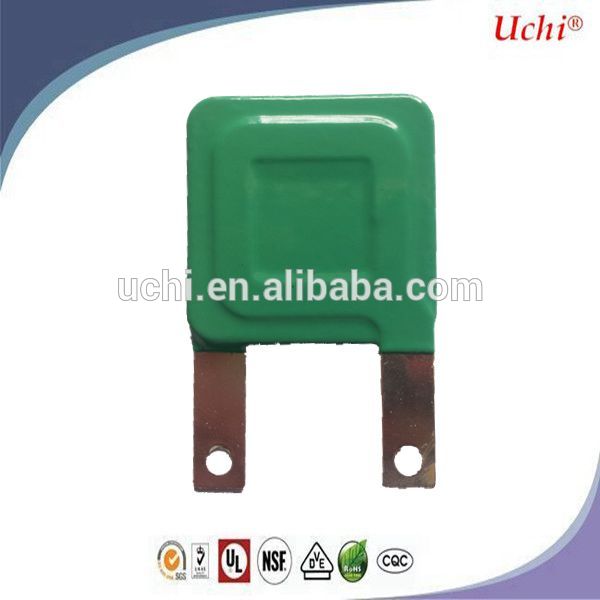

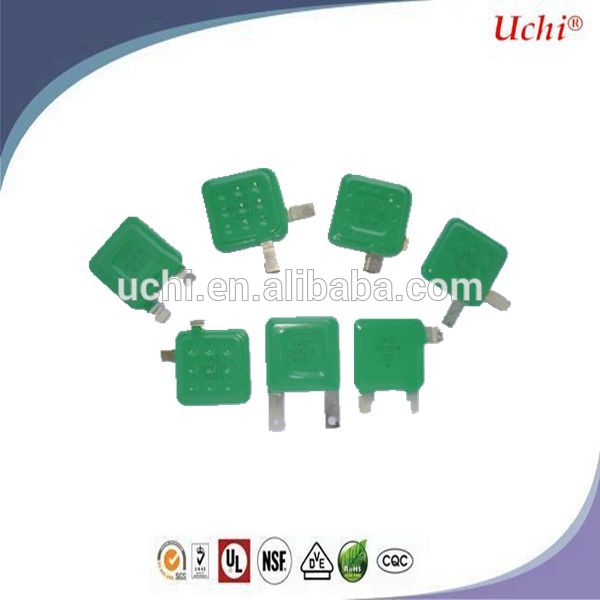

34S Metal Oxide Varistor Pictures

Uchi was established in 2006 in Dongguan, China.

After years of development, Uchi has become a large scale hi-tech enterprise that specialized in development and production of complete series of MOV,PTC, NTC series, PPTC series, Fuse(ALL TYPE),Resistor、integrated circuit 、 Capacitor, surge protector and protective devices of lightning protection products. It ranks front in the industry and has heartquarter in Hong Kong. With its excellent technology and quality products, Uchi has won wide recognition of overseas customers. Saini Impex PVT.LTD is our authorized sole distributor in india .

China's leading enterprise of circuit protection components​

Our strength ：

A large number of product series in our factory have passed the certification of various international standards




Factory Tour​ ：

Advanced equipment, lean production

Uchi boasts with a production base that covers an area of nearly 15000 square meters.


We successively imported high-tech fully automated production equipments and high precision testing instruments and have put into production to realize the automation, large scale and standardization.

Uchi has a galaxy of hi-tech talent teams headed up by national class experts to engage in the work of product development, product quality control, sales andservice technical support, etc., and has successively obtained tens of certificates of appearance patents, utility patents and inventions.


To guarantee the quality, we successfully passed the certification of ISO9001:2008 quality management system, scientific and efficient managing mode to carry out lean production and form scientific and efficient quality control system. The products are certified with UL, CUL, TUV, VDE, CSA and SGS, RACH 73 environmentally friendly testing certifications.

Exquisite quality at customers' favor

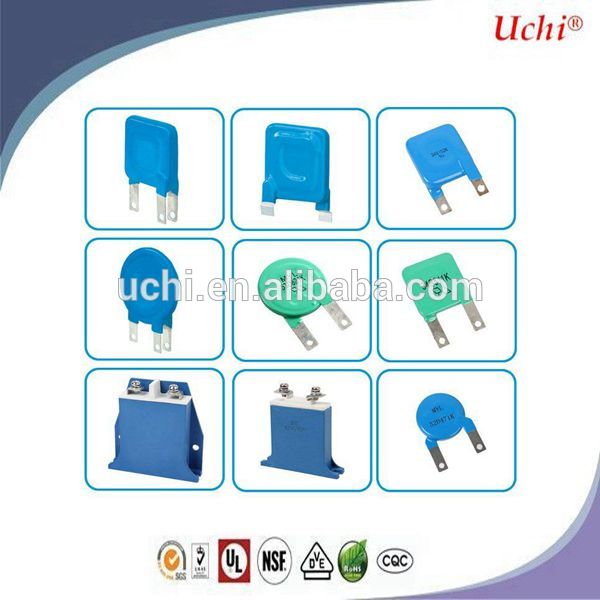

Uchi is an export membership of Alibaba with free import and export rights. It is appraised as Guangdong Famous Star Enterprise and Dongguan Private Enterprise. Our products have doubled and redoubled to provide more kinds and high quality and reliable products and service. Our products mainly consist of:
