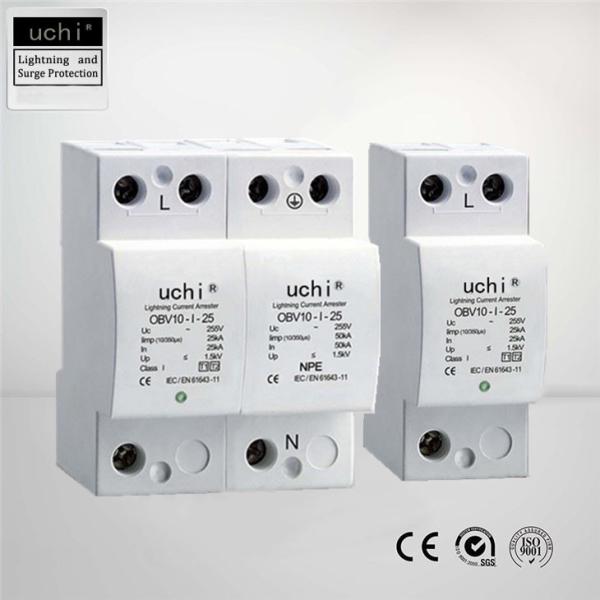

    DC 1000V Surge Protection Device IP 20 Temperature -40-85 Degrees Celsius

    Ask Lasest Price
    Brand Name : Uchi
    Model Number : OBV10-I-25
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 60000 pieces per month
    Delivery Time : 5-15 days after payment
    • Product Details
    • Company Profile

    DC 1000V Surge Protection Device IP 20 Temperature -40-85 Degrees Celsius

    Environment temperature Range (-40℃~+85℃) Surge Protection Device / IP 20


    OBV10-I-15


    Heavy duty AC Surge Protection Device (SPD) for high risk, low tolerance electrical service entrance applications. The OBV10-I-25 provides protection against the direct and indirect effects of lightning and is particularly useful in a high lightning area where the risk of heavy surge current or even direct strike is high, i.e. buildings equipped with lightning rods.


    Lightning current arrestors OBV10-I-25 meet the type 1 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The voltage-limiting, high-performance spark gaps provide several benefits. A short response time, a low protection level and high current leakage capability with long service life.


    Application:


    • SPDs for CCTV is mainly used for supervisory control system, preventing product from lightning
    strike and surge.
    • Protect the video equipment effectively and ensure the image can display normally5.Inhibit the
    overvoltage pulse issue fromthe transmission line on the camera effectively, Avoiding the video
    surveillance equipment damage due to overvoltage pulse.
    • Offer surge protection for almost any products application in power, instrumentations and controls,
    network and data lines, coax and etc.
    • For Radio Antennas, GPS Antennas, CATV, CCTV and Satellite TV.

    Advantage:


    • Lower Prices
    • Low Capacitance
    • High Discharge Current
    • Continuous and repeated protection in intense environment


    Technical Parameters


    System voltage Un
    500/600VDC
    1000VDC
    Max. continous operation AC voltage
    585VDC-615VDC
    585VDC-615VDC in series connection
    Norminal discharge current(8/20μs)
    20kA
    20kA
    Maximum discharge current (8/20μs)
    40kA
    40kA
    Voltage protection level (L-N)
    2.4kV
    4kV
    Response time (L-N) tA
    ≤25ns
    ≤25ns
    Environment temperature Tu
    -40℃~70℃
    -40℃~70℃
    Status indicator
    Green(good) / red(need replacement)
    Green(good) / red(need replacement)
    Mounting
    35mm Standard Guide
    35mm Standard Guide
    Cross section of wire (Min.)
    16mm2
    16mm2
    Cross section of wire (Max.)
    25mm2
    25mm2
    Casing material
    PA6 UL94-V0
    PA6 UL94-V0
    Degree of protection
    IP20
    IP20
    Remote Signalling
    Inside preinstalled optional
    Inside preinstalled optional


    Feature:


    1,Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
    2,Protect transmission of Ethernet signals with 48V DC / 34V AC power supply circuits against
    lightning induced surges.
    3,Enhanced surge protection.
    4,For mounting on 35mm DIN rails acc. to EN 60715
    5,It can effectively ensure the equipments work properly

    Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):


    Type No.Rated Voltage(V) UnContinuous Voltage Uc(V~)Standard Discharge Current In(KA)

    Max Discharge Current

    Imax(KA)

    Protection Level(KA~)Response Time(ns)
    DGM1(2)-D5220/380

    275/320

    385/420

    5101.2≤25
    DGM1(2)-D101021.6
    DGM1(2)-C2020401.8
    DGM13-B303060.2.2
    DGM3(4)-B4010802.4
    DGM(4)-B60601002.8
    DGM-N-PE220/25540/6060/801.2≤100
