Batteries. Automobile Electronic,Rated Current100 A,150A,200A,Alloy Thermal-link Thermal Cutoff (TCO)

Alloy Thermal-link / Thermal Cutoff (TCO) is defined as a non-resettable protective device functioning one time only. It is wide-
ly used in electrical equipment. Alloy TCO is mainly consist of fusible alloy, flux, plastic or ceramic case, sealant epoxy and
lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the
fusing temp. of alloy TCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux and dis-
connects the circuit completely. Rated Current 1 A to 200 A, Rated Functioning Temp. 76 °Cto 230 °C, with CCC, Approvals and RoHS, REACH compliant.

EM Series Ir : 100 A

Dimensions (mm)

Model	Tf	Fusing Temp.	Th	Tm	Ir	Ur
	(°C)	(°C)	(°C)	(°C)	(A)	(V)
EM2	102	99±2	61	180	100	DC 100	●

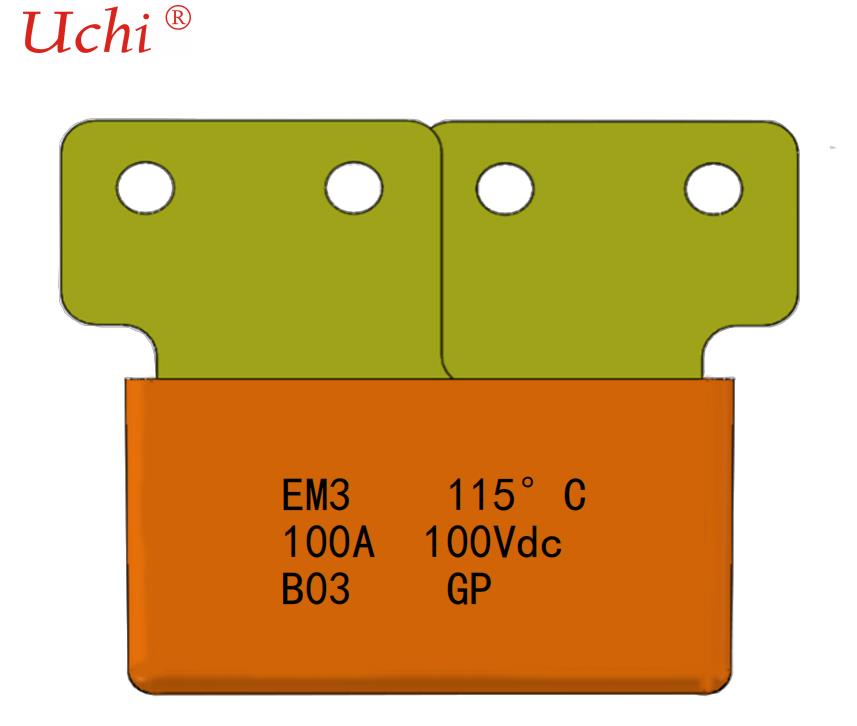

EM3	115	112±2	74	180	100	DC 100	●
EM4	125	122±2	84	180	100	DC 100	●
EM5	130	126±2	88	180	100	DC 100	●
EM8	136	132±2	94	180	100	DC 100	●
EM10	150	146±2	108	180	100	DC 100	●
EM11	160	156±2	123	180	100	DC 100	●

FM Series Ir : 150 A

Dimensions (mm)

Model	Tf	Fusing Temp.	Th	Tm	Ir	Ur
	(°C)	(°C)	(°C)	(°C)	(A)	(V)
FM2	102	99±2	61	180	150	DC 100	●
FM3	115	112±2	74	180	150	DC 100	●
FM4	125	122±2	84	180	150	DC 100	●
FM5	130	126±2	88	180	150	DC 100	●
FM8	136	132±2	94	180	150	DC 100	●
FM10	150	146±2	108	180	150	DC 100	●
FM11	160	156±2	123	180	150	DC 100	●

LM Series Ir : 200 A

Dimensions (mm)

Specifications

Model	Tf	Fusing Temp.	Th	Tm	Ir	Ur
	(°C)	(°C)	(°C)	(°C)	(A)	(V)
LM2	102	99±2	61	180	200	DC 100	●
LM3	115	112±2	74	180	200	DC 100	●
LM4	125	122±2	84	180	200	DC 100	●
LM5	130	126±2	88	180	200	DC 100	●
LM8	136	132±2	94	180	200	DC 100	●
LM10	150	146±2	108	180	200	DC 100	●
LM11	160	156±2	123	180	200	DC 100	●
