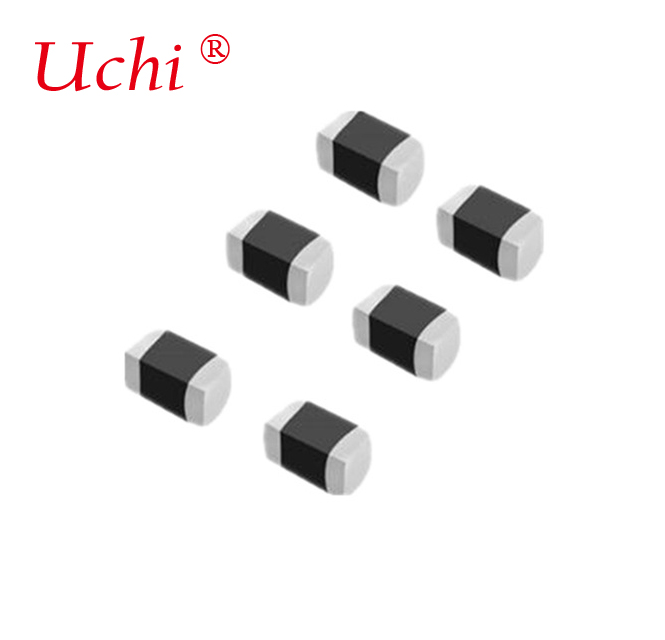

Transient Voltage Suppression NTC SMD Thermistor , 120pF Multilayer Chip Varistor

    Buy cheap Transient Voltage Suppression NTC SMD Thermistor , 120pF Multilayer Chip Varistor from wholesalers

    Buy cheap Transient Voltage Suppression NTC SMD Thermistor , 120pF Multilayer Chip Varistor from wholesalers
    • Buy cheap Transient Voltage Suppression NTC SMD Thermistor , 120pF Multilayer Chip Varistor from wholesalers

    Transient Voltage Suppression NTC SMD Thermistor , 120pF Multilayer Chip Varistor

    Ask Lasest Price
    Brand Name : Uchi
    Model Number : NTC QV0402E180C150T
    Certification : ROHS,REACH
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10 Billion per year
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Transient Voltage Suppression NTC SMD Thermistor , 120pF Multilayer Chip Varistor

    NTC SMD Thermistor Transient Voltage Suppression Multilayer Chip Varistor 120pF 150pF

    Application: Mobile phone battery and charger, temperature compensated quartz oscillator, LCD, computer microprocessor protection circuit, electronic circuit, integrated circuit (IC) and semiconductor device protection circuit, printer temperature compensation, various player driver protection circuit, program-controlled exchange, DC/AC converter overheating protection circuit.

    Chip Varistor for Power-lines Protection




    ① Type
    QVChip Varistor

    ② External Dimension L×W×T (mm)
    04021.00×0.50×0.50
    06031.60×0.80×0.80
    08052.00×1.25×0.85

    ③ Application Code
    EESD Protection and transient voltage suppression

    ④ Maximum Continuous Working Voltage
    5R55.5V
    18018V

    ⑤ Capacitance @1MHz
    C121120pF
    C15015pF

    ⑥ Packaging
    TTape
    BBulk


    2. Structure and Dimensions


    TypeL (mm)W (mm)T (mm)a (mm)
    04021.00±0. 100.50±0. 100.50±0. 100.25±0. 15
    06031.60±0. 150.80±0. 150.80±0. 150.30±0.20
    08052.00±0.201.25±0.200.85±0.200.50±0.30

    Part

    Component

    ZnO Semiconductor Ceramics for Chip Varistor

    Internal

    Electrode

    (Ag or Ag-Pd)

    Terminal Electrode (Ag/Ni/Sn three layers)

    3.Features
    SMD type suitable for high density mounting
    Excellent clamping ratio and quick response time (<0.5ns)
    Excellent solderability (Ni, Sn plating)
    4. Applications
    ESD protection for high-speed data lines such as USB 2.0, firewire, IEEE 1394 interfaces, RF
    antennas, RF modules. ESD protection for I/O ports of video and audio lines.
    Transient voltage protection for IC and transistor.
    Used in mobile communications, computer/EDP, LCD Module, hand held/portable devices, PDA
    etc.

    Chip Varistor for High Surge Current Suppression

    Structure and Dimensions


    SMD type, suitable for high density mounting Excellent clamping ratio and strong capabil tyi of

    voltage surge suppression

    Excellent solderab lity (Ni,i Sn plating)

    Applications

    Used for security system, PLC, Automotive electronics, Industrial instrument, smart meters, Control and measurement equipment, etc.


    Please see product specification

    QV0402E180C150T.pdf
