    Original 3225 SMD Varistor , 3225K201 21S Metal Oxide Varistor MOV ZOV

    Ask Lasest Price
    Brand Name : UCHI
    Model Number : SMD3225
    Certification : CQC,CUL,TUV,RoSH,REACH
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50000000PCS/MONTH
    Delivery Time : 10-15 workday
    • Product Details
    • Company Profile

    Original 3225 SMD Varistor , 3225K201 21S Metal Oxide Varistor MOV ZOV

    3225 SMD varistor Original 3225K201 21S Metal Oxide Varistor MOV ZOV


    Feature

    1.Advancedpackagingtechnology,packagingmaterialsmeetUL94-V0
    2.Compactstructure,smallsize,spacesaving
    3.Superiorhightemperatureandhighhumidityperformance
    4.Strongabilitytosuppresshighsurgeandhighcurrent
    5.SMDtraypackaging,suitableforlead-freereflowsoldering/wavesolderingautomaticplacement
    6.ComplywithRoSH,REACH
    7.Safetycertification:CQC,CUL,TUV(certificationinprogress)
    Application
    1.LEDcircuitprotection
    2.Industrialequipment
    3.Communicationequipment
    4.AutomotiveElectronics
    Applicablestandards
    1.UL1449
    2.IEC61051-1,-2,-2-2,IEC60950-1AnnexQ
    3.GB/T10193,GB/T10194,GB4943.1,GB8898
    4.IEC61000-4-5

    General Technical data


    ItemParameter valueUnit
    Working temperature-55 — + 125C
    Storage temperature-55 — + 125C
    Allowable Voltage≥ 2.5KVRMS
    Insulation resistance≥ 100M Ω


    Structure and Dimensions

    (Unit: mm

    Size CodeVaristor Voltage (V)LWH

    3225

    V1ma=201—6818.2±0.36.3±0.33.8±0.3
    V1ma=751—8215.2±0.3

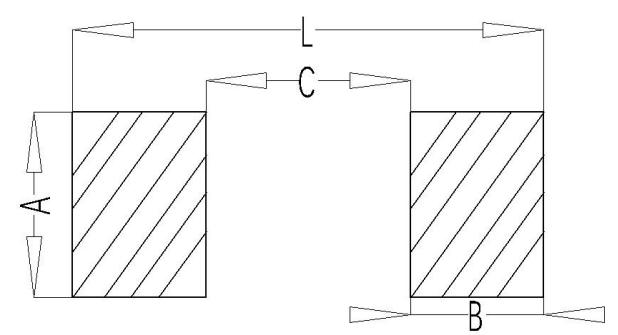

    Dimensions


    ( unit: mm )


    Model numberABCL
    32253.52.84.510.1

    The following is the specification sheet

    3225SMD varistor datasheet.pdf
