    700 Vac / Dc Glass Fuses FWP 700V 400A For New Energy Automobile

    Ask Lasest Price
    Brand Name : EATON COOPER BUSSMANN
    Model Number : FWP 700V 400A
    Certification : CE,UL,CSA
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000000PCS
    Delivery Time : Stocks
    • Product Details
    • Company Profile

    700 Vac / Dc Glass Fuses FWP 700V 400A For New Energy Automobile


    EATON COOPER BUSSMANN North American High Speed Fuse FWP 700V 400A For New Energy Automobile


    North American — FWP 700V: 5-1200A
    North American style stud-mount fuses

    ————————————————————————————————


    Description:


    North American style stud-mount fuses.

    Ratings:
    Volts: 700Vac/dc
    Amps: 5-1200A
    IR: 200kA RMS Sym. 50kA @700Vdc

    Agency Information: CE, UL Recognition & CSA Component Acceptance on 5-800A


    Features and Benefits


    • Excellent DC performance
    • Low arc voltage and low energy let-through (I2t)
    • Superior cycling capability


    Typical Applications


    • DC common bus
    • DC drives
    • Power converters/rectifiers
    • Reduced voltage starters


    Details


    Catalog NumberFWP-_B (5 to 100 amps), FWP-_A (125 to 1200 amps)
    DimensionsSee data sheet no. 720012
    Volts700 Vac/dc
    Amps- 5 to 100 A (FWP-_B)
    - 125 to 1200 A (FWP-_A)
    Interrupting rating- 200 kA RMS Sym.
    - 50 kA @700 Vdc (5 - 100 A and 700 - 800 A)
    - 10 kA @ 700 Vdc (125 - 600 A)
    Agency information- CE
    - UL Recognized JFHR2 E91958 (5 - 100 A and 700 - 1200 A)
    - UL Recognized JFHR2 E56412 (125 - 600 A)
    - CSA Component Acceptance File Class 1422 (53787 for 5 - 800 A)
    Typical applications- DC common bus
    - DC drives
    - Power converters/rectifiers
    - Reduced voltage starters

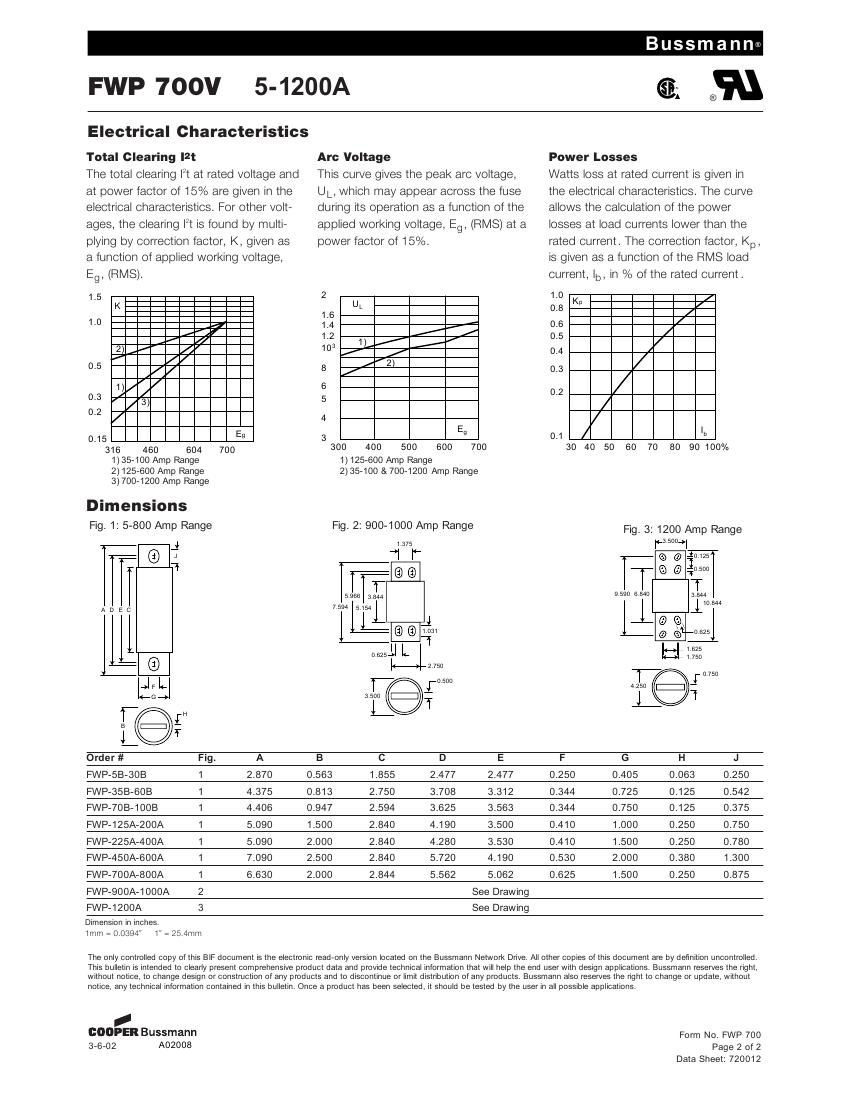

    Dimensions (in)


    Order #Fig.ABCDEFGHJ
    FWP-5B-30B12.870.5631.8552.4772.4770.250.4050.0630.25
    FWP-35B-60B14.3750.8132.753.7083.3120.3440.7250.1250.542
    FWP-70B-100B14.4060.9472.5943.6253.5630.3440.750.1250.375
    FWP-125A-200A15.091.52.844.193.50.4110.250.75
    FWP-225A-400A15.0922.844.283.530.411.50.250.78
    FWP-450A-600A17.092.52.845.724.190.5320.381.3
    FWP-700A-800A16.6322.8445.5625.0620.6251.50.250.875
    FWP-900A-1000A2See Drawing
    FWP-1200A3


    Catalog Numbers


    Electrical CharacteristicsOrdering InformationDimensions
    TypeRated Current RMS-AmpsI2t (A2 Sec)Watts LossPart NumberCarton Qty.Carton Weight (lbs)Figure Number
    Pre-arcClearing at 700V
    FWP 700V5A1.6101.5FWP-5B102.25Fig.1
    10A3.6204FWP-10B
    15A10755.5FWP-15B
    20A261806FWP-20B
    25A443407FWP-25B
    30A584509FWP-30B
    35A3416012FWP-35B51.21
    40A7632012FWP-40B
    50A13560012FWP-50B
    60A21095015.5FWP-60B
    70A305200018FWP-70B10.24
    80A360240021FWP-80B
    90A415270025FWP-90B
    100A540350027FWP-100B
    125A1800730028FWP-125A0.65
    150A29001170032FWP-150A
    175A42001670035FWP-175A
    200A55002200043FWP-200A
    225A77003130045FWP-225A1.17
    250A105004250048FWP-250A
    300A176007120058FWP-300A
    350A237009560065FWP-350A
    400A3100012500078FWP-400A
    450A3640013700094FWP-450A2.39
    500A45200170000107FWP-500A
    600A66700250000122FWP-600A
    700A54000300000125FWP-700A1.21
    800A78000450000140FWP-800A
    900A91500530000150FWP-900A6.6Fig.2
    1000A120000600000170FWP-1000A
    1200A1950001100000190FWP-1200AFig.3

    - 1 kg = 2.2 lbs 1 lb = 0.45 kg
    - Interrupting rating 200kA RMS Symmetrical.
    - Watts loss provided at rated current.
    - (700 Vdc/Interrupting rating 50kA) U.L. Recognition & CSA Component Acceptance on 5 through 100 & 700 through 800 amperes.
    - (700 Vdc/Interrupting rating 10kA) U.L. Recognition & CSA Component Acceptance on 125 through 600 amperes.
