Air Disinfection 3535 UVC LED 270-280nm 390-405nm UVA LED 0.5W For Sterilization

Brief Description

The 3535 UV Surface Mount UVC LED featured emission wavelengths between 270nm-280nm and 390-400nm with a narrow viewing angle. These UVC LED include a standard SMD process and a 120° wide viewing angle. The 3535-UV LEDs offer 20mW output radiant power, 30mA forward current, and 115°C junction temperature. These UVC LEDs function with 3V to 3.4V forward voltage range. The 3535-UV LEDs have a 3.5mm x 3.5mm compact form factor. These UVC LEDs are ideal for use in florescence analyzer, food and pharmaceutical processing, horticulture, and medical spectroscopy.

1.Product Introduction of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

The 3535 LED light source is a high-performance energy-saving device that can handle high heat and high drive current. The Purple LED light source with peak wavelength ranging from 270nm to 280nm and 390-405nm. This part has a foot print that is compatible to most of the same size LED in the market today.

2.Features of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

Deep UV LED with emission
Wavelength between 270nm to 280nm and 390-405nm
Compatible with reflow soldering process
Low thermal resistance
Wide viewing angle at 120°
Superior ESD protection
Environmental friendly, RoHS compliance

3.Application of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

Personal hygiene
Portable devices
Water disinfection
Surface disinfection
Air disinfection

4.Package Dimension of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002 (Unit:mm)

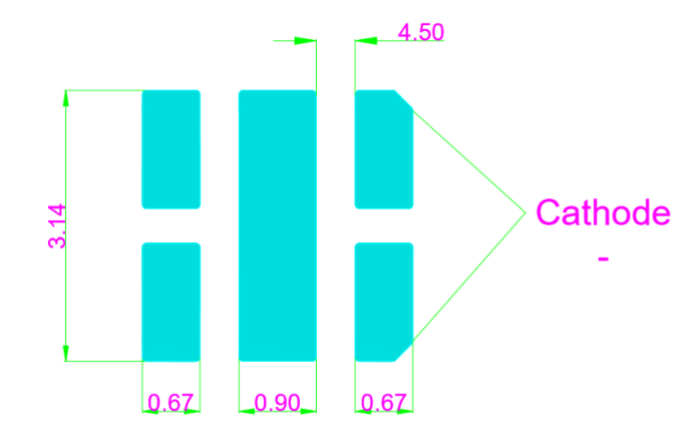

5. Recommended Solder Pad Design of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

Notes:

1. All dimensions in millimeters.

2. Thickness tolerance of copper plate is ±0.02mm.

3. Thickness tolerance of product is ±0.05mm.

4. Tolerance is ±0.1mm unless otherwise noted.

6. ABSOLUTE MAXIMUM RATINGS(UVA)(Ta=25℃)of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

7.CHARACTERISTICS (UVA) (Ta=25℃) of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

Notes:

1. Radiant Flux is measured with an accuracy of ± 5%.

2. peak wavelength is measured with an accuracy of ± 5%.
3. All measurements were made under the expanded standardized environment .

8. ABSOLUTE MAXIMUM RATINGS(UVC)(Ta=25℃)of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

9. CHARACTERISTICS (UVC)(Ta=25℃) of the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

Notes:

1. Radiant Flux is measured with an accuracy of ± 5%.

2. peak wavelength is measured with an accuracy of ± 5%.

3. All measurements were made under the expanded standardized environment .

10. SORTING RANKS(UVA) the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

(1) Radiant Flux (Tj=25℃)

(2) Forward Voltage (Tj=25℃)

(3) Peak wavelength (Tj=25℃)

Notes|

1. 10% tolerance for Radiant Flux may be caused by measurement inaccuracy.

2. Measurement Uncertainty of the Forward Voltage : ± 0.03V

11. SORTING RANKS(UVC) the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002

(1) Radiant Flux (Tj=25℃)

(2) Forward Voltage (Tj=25℃)

(3) Peak wavelength (Tj=25℃)

Notes|

1. 10% tolerance for Radiant Flux may be caused by measurement inaccuracy.

2. Measurement Uncertainty of the Forward Voltage : ± 0.03V

12. REFLOW SOLDERING CHARACTERISTICS the 0.5W 3535 UV Surface Mount UVC LED ALT35UVA+UVC02-002
For Reflow Process
Preheating : 120℃~150℃±5℃,within 2 minutes.
Operation heating : 210℃(Max.) within 10 seconds.(Max) 210℃ within 10 seconds.

Gradual Cooling (Avoid quenching).
