    High Current Fast Blow Square 80A 250VAC Surface Mount Fuse


    4512 12.4mm*4.5mm High Current Fast Blow Square Surface Mount Fuse 80A 72VDC 250VAC For Battery Management System


    High Current Fast Blow Square 80A 250VAC Surface Mount Fuse

    Typical Application


    Electrical Tools

    BMS

    Battery

    5G Telecom
    Telecom power supply
    Cloud computing supply
    Server storage system
    Battery management system
    Energy storage system
    AC Charging Pile


    Actual Product Photo




    Features


    1. Fast Acting High current brick fuse
    2. Surface mount deign to save space
    3. Ceramic Suqare body with end cap design
    4. Designed to UL248-1/1
    5. High current rating available
    6. Low temperature de‐rating
    7. Wide operating temperature range
    8. RoHS compliant, Halogen Free



    Part Numbering


    Part

    No.

    Ampere

    Rating

    Voltage

    Rating

    Breaking

    Capacity

    Nominal Cold

    Resistance

    (Ohms)

    I2TMelting

    Integral(A2.S)

    Agency Approvals

    ULCUL

    R1245F.80

    80A250V/125VAC/DC72V63V/32VDC

    200A@250VAC

    500A:@125VAC

    1000A@72V63V/32VDC

    0.0008905275











    Standards and Agency Approvals


    Standards:In accordance with UL 248-14.

    Agency

    Ampere Range

    Agency File Number

    UL15A ~ 100AE502159 (JDYX2)
    CUL15A ~ 100AE502159 (JDYX8)



    Operation Time


    % of Ampere Rating(In)

    Blowing Time

    100% * In4 hours Min
    200% * In60 sec Max


    Breaking Capacity


    200A @250VAC500A:@125VAC 1000A@72V63V/32VDC

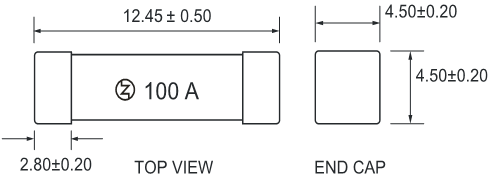

    Dimensional Drawing (Unit:mm)


    NO.

    Part Name

    Material

    1End capsAu Plated Brass Cap
    2BodyNon-Transparent Square Ceramic Tube
    3Fuse elementCu-Ag Alloy wire











    Reliability


    NO.

    ​Item

    ​Content

    Reference standards

    Product Marking

    Brand, Ampere RatingMarking standards

    Operating Temperature

    -55°C to 125°C–55ºC to 125ºC with proper derating

    Solderability

    T=240°C±5±5°C , t=3sec±0.5sec, Coverage≥95%

    MIL-STD-202, Method 208

    Resistance to Soldering Heat

    10 sec at 260°CMIL-STD-202, Method 210, Test condition B

    Insulation Resistance (after Opening)

    10,000 ohms minimumMIL-STD-202, Method 302, Test Condition A

    Thermal Shock

    5 cycles, -65°C / +125°C, 15 minutes at each extremeMIL-STD-202, Method 107, Test Condition B

    Mechanical Shock

    100G’s peak for 6 milliseconds, 3cyclesMIL-STD-202, Method 213, Test I

    Vibration

    0.03”amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrsMIL-STD-202, Method 201

    Moisture Resistance

    10 cyclesMIL-STD-202, Method 106

    Salt Spray

    5% salt solution, 48hrsMIL-STD-202, Method 101, Test Condition B


    Package


    1500 pcs per inner box ,5 inner boxes per outer carton


    Operating Time
