    SMD SMT 40A 250V Surface Mount Fuse Gold Plated Cross

    Ask Lasest Price
    Brand Name : REOMAX
    Model Number : R1245F.40A
    Certification : UL,CUL
    Price : 0.69~0.8USD/PC
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000,000PCS PER WEEK
    Delivery Time : 7-10 DAYS
    • Product Details
    • Company Profile

    SMD SMT 40A 250V Surface Mount Fuse Gold Plated Cross


    456 Series Cross R1245F Gold Plated Brick Ceramic SMD SMT Surface Mount Fuse 40A 250V For Power Battery Protection Board

    SMD SMT 40A 250V Surface Mount Fuse Gold Plated Cross

    Description


    The High Current NANO2® Fuse is a small square surface mount fuse that is designed to support higher current requirements of various applications.



    Features


    Founded in 1999 with guaranteed credibility

    Strict in raw materials

    Professional technology

    Auotomatic production

    UL CUL Certificated
    Surface mount high current fuse

    Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly

    RoHS compliant and Halogen Free

    Available in ratings of 20 to 40 Amperes

    Conforms to EN 60127-1 and EN 60127-7

    Conforms to DENAN’s Appendix 3


    Application


    Voltage regulator module for PC server

    Cooling fan system for PC server

    Storage system power

    Basestation power supply


    Dimensional Drawing (mm)


    NO.

    Part Name

    Material

    1End capsAu Plated Brass Cap
    2BodyNon-Transparent Square Ceramic Tube
    3Fuse elementCu-Ag Alloy wire

    Interrupting Rating Breaking Capacity: 200A @250VAC500A:@125VAC 1000A@72V63V/32VDC


    Operating Characteristics

    % of Ampere Rating(In)

    Blowing Time

    100% * In4 hours Min
    210% * In60 sec Max
    250% * In10 sec Max

    Packing


    1500 pcs per inner box,5 inner boxes per outer carton


    Fuse Selection Guide


    Begin-->Agency Approval-->Dimension-->Rated Voltage--> Interrupting Rating --> Rated Current --> Part Number --> Test--> END.

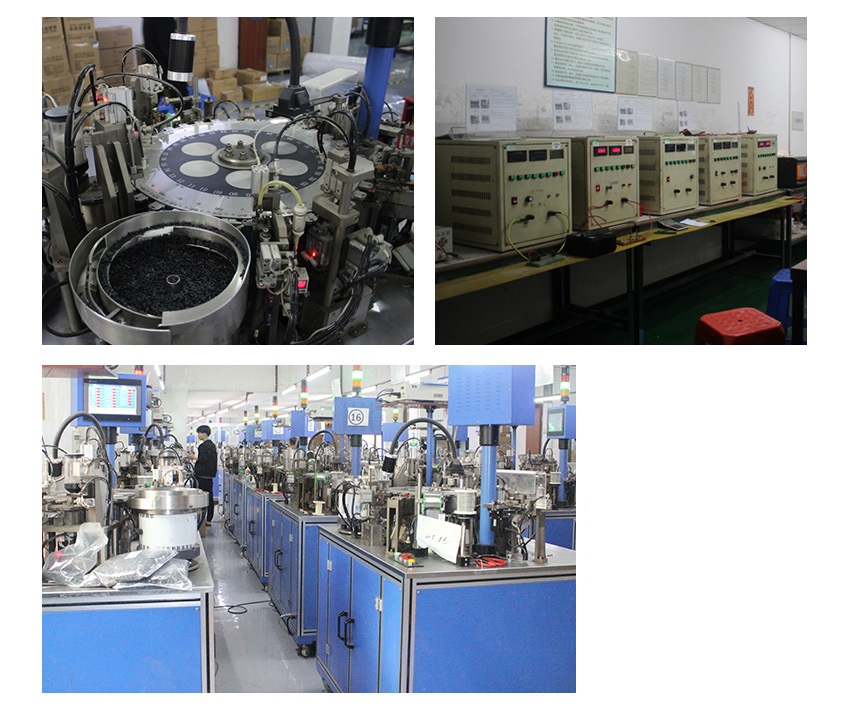

    FACTORY GLANCE



    Certificates





    Reliability


    Operating Temperature -55OC to 125OC with proper derating

    Thermal Shock MIL-STD-202, Method 107, Test Condition B (5 cycles -65OC to 125OC)

    Vibration MIL-STD-202, Method 201 (10-55 Hz)

    Moisture Sensitivity Level J-STD-020, Level 1

    Moisture Resistance MIL-STD-202 Method 106,

    High Humidity (90-98%RH), Heat (65OC)

    Salt Spray MIL-STD-202, Method 101, Test Condition B Mechanical Shock MIL-STD-202, Method 213, Test Condition I (100 G’s peak for 6 milliseconds)
