    SOT89-3 78L05 5v Voltage Regulators Plastic Encapsulate

    FEATURES


    1.Maximum output current IOM : 0.1A
    2.Output voltage VO : 5V
    3. Continuous total dissipation PD : 0.6 W (Ta= 25 ℃)


    ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified)


    ParameterSymbolValueUnit
    Input VoltageVi30V
    Thermal Resistance from Junction to AmbientRθJA160℃/W
    Operating Junction Temperature RangeTOPR-40~+125
    Storage Temperature RangeTSTG-65 ~+150

    ELECTRICAL CHARACTERISTICS AT SPECIFIED VIRTUAL JUNCTION TEMPERATURE (Vi=10V,Io=40mA,Ci=0.33uF,,Co=0.1uF, unless otherwise specified )


    ParameterSymbolTest conditionsMinTypMaxUnit

    Output voltage


    Vo


    25℃

    4.805.05.20V
    4.855.05.15V
    4.905.05.10V
    7V≤Vi≤20V, Io= 1mA~40mA0-125℃4.755.05.25V
    Io=1mA~70mA4.755.05.25V
    Load RegulationΔVoIo=1mA~100mA25℃1160mV
    Io=1mA~40mA25℃530mV
    Line regulationΔVo7V≤Vil≤20V0-125℃55150mV
    8V≤Vi≤20V25℃45100mV
    Quiescent CurrentIq25℃3.86mA
    Quiescent Current ChangeΔ Iq8V≤Vi≤20V0-125℃1.5mA
    Δ Iq1mA≤V l≤40mA0-125℃0.1
    Output Noise VoltageVN10Hz≤f≤100KHz25℃40μV/Vo
    Ripple RejectionRR8V≤Vi≤20V,f=120Hz0-1254149dB
    Dropout VoltageVd25℃1.7V

    TYPICAL APPLICATION

    Typical Characteristics

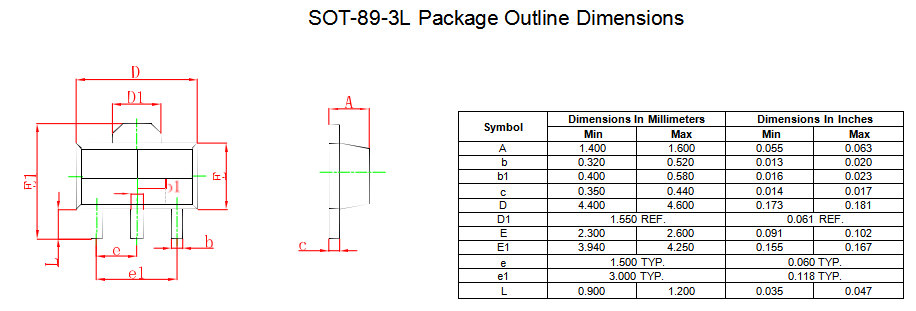

    Outlitne Drawing

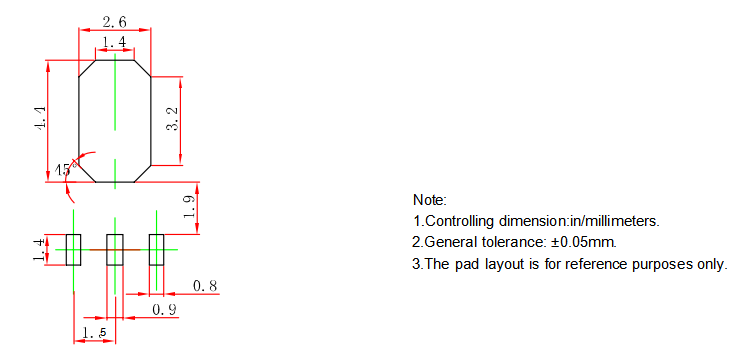

    SOT-89-3L Suggested Pad Layout
